LabPump multi-channel independent control peristaltic pump
-
- Commodity name: LabPump multi-channel independent control peristaltic pump
Flow rate per channel ranges from 0.2μl/min to 48ml/min. Each channel is independently controlled and calibrated, with multi-channel coordinated linkage function.
Product Introduction
◆ The LabPump series peristaltic pumps are compact, independently controlled, micro-peristaltic pumps. Each channel is independently controlled and calibrated, replacing multiple dispensing or flow peristaltic pumps while enabling multi-channel coordinated linkage to meet complex and variable fluid transfer and dispensing requirements.
◆ Independent Channels: Channels are completely independent; each channel can select different tubing specifications, set different operating modes, and set different volumes, speeds, and times.
◆ Operating Modes: Flow mode, timed volume mode, timed speed mode, and volume speed mode.
◆ Channel Closure: Any channel can be closed via the interface; once closed, the channel cannot be set or controlled.
◆ Touchscreen Display: 5-inch high-definition touchscreen for easy operation.
◆ Calibration Function: Each channel is independently calibrated, and calibration parameters are stored.
◆ Online Speed Adjustment: Speed and flow rate can be adjusted during operation.
◆ Prompt Function: Real-time display of the maximum flow rate available for different tubing specifications; dynamic display of the operating parameters of each channel.
◆ External Control Start/Stop: External control level signal (5-24V) or contact signal to achieve independent start/stop control of each channel.
◆ Communication Control: RS485/USB optional; touch control to set address and baud rate.
◆ Status Output: Each channel independently outputs start/stop and direction status.
◆ Card Material: POM material, PVDF material
◆ Pump Head Rollers: 10 rollers
◆ Roller Material: PET, nylon + molybdenum disulfide; 2 materials optional
Technical Parameters
Product Model LabPump2
LabPump3
LabPump4
Number of Channels
2
3
4
Each channel is independent
Each channel is completely independent: independent tubing configuration, independent parameter configuration, independent operation, independent control, independent calibration Operating Modes
Flow mode, timed volume mode, timed speed mode, volume speed mode Channel Closure
Any channel can be closed via the interface; once closed, the channel cannot be configured or controlled. Touchscreen Display
800*480 5-inch high-definition touchscreen; easy to operate, clear information Language Types
Chinese and English; 2 languages optional Calibration Function
Each channel is independently calibrated, and calibration parameters for each channel are stored independently. Online Speed Adjustment
Speed and flow rate can be adjusted during operation. Prompt Function
Real-time display of the available flow rate and speed for different tubing specifications; dynamic display of the operating parameters of each channel. Power-On Operation
Stores current dynamic operating parameters when power is off and continues operation after power is restored. External Control Function
Start/stop control by external signal or contact; control methods: high level (5-24V), low level, pulse optional Foot Switch
6.35 foot switch jack; total start/stop control via foot switch. Communication Control
RS485/USB optional; touch control to set address and baud rate. Status Output
Each channel independently outputs start/stop and direction status. Speed Range
0.01～150rpm Speed Resolution
0.01rpm Tubing Specifications
Inner diameter ≤3.17mm, wall thickness 0.76～1.0mm Single Channel Reference Flow Rate
0.2μl/min～48ml/min (medium is water) Volume Range
0.1μl ～ 9999.999L Timing Range
0.1s ～999.9hr Number of Cycles
0 ～65535, 0 represents infinite cycle Aspiration Angle
0 ～65535° Card Material
POM material, PVDF material Pump Head Rollers
10 rollers Roller Material
PET, nylon + molybdenum disulfide; 2 materials optional Applicable Power Supply
AC 90V-264V 50/60Hz Operating Environment
Temperature: 0-40℃ Humidity: 20%-80% RH, no condensation Storage Environment
Temperature: -10-60℃ Humidity: 20%-80% RH, no condensation Protection Level
IP31 Product Dimensions (mm)
252.5*126*165 Flow Rate Range

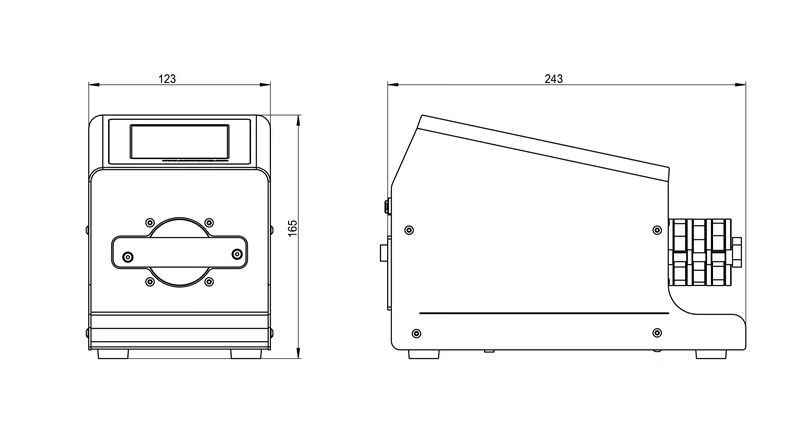

Applicable Tubing (Inner Diameter * Wall Thickness mm) 0.5*0.8 1*1 2*1 3*1 Flow Rate Range (mL/min) 0.0013~2 0.006~9 0.022~33 0.032~48 External Dimensions
