G-3Z+KZ25
Flow range: ≤6000mL/min, driven by DC geared motor, larger flow requires DC power supply, optional DC12V and DC24V, base mounting, suitable for industrial use
Category:
- Product Description
G-3Z+KZ25
-
- Commodity name: G-3Z+KZ25
Flow range: ≤6000mL/min, driven by DC geared motor, larger flow requires DC power supply, optional DC12V and DC24V, base mounting, suitable for industrial use
Product Introduction
◆ Flow Range: ≤6000mL/min High-performance DC geared motor drive, larger flow, DC power supply
◆ DC12V and DC24V optional, base mounting, suitable for industrial use
Technical Parameters
Applicable Pump Head KZ25A Speed Range ≤600rpm, fixed speed, various speeds optional, 20rpm, 25rpm, 30rpm, 50rpm, 60rpm, 83rpm, 166rpm, 200rpm, 240rpm, 500rpm, 600rpm. Wide flow range Adaptable Tubing 15#, 24#, 35#, 36# Applicable Power Supply DC12V/2A or DC24V Working Environment 0-40℃, Relative Humidity: <80% Weight 2700g Selection Guide
Product Model
Pump Head Roller Number
Optional Channel
Tubing
Speed Range (RPM)
Flow Range (mL/min)
G-3Z+KZ25A
3
1
15#
≤600
≤1800
24#
≤3200
35#
≤4500
36#
≤6000

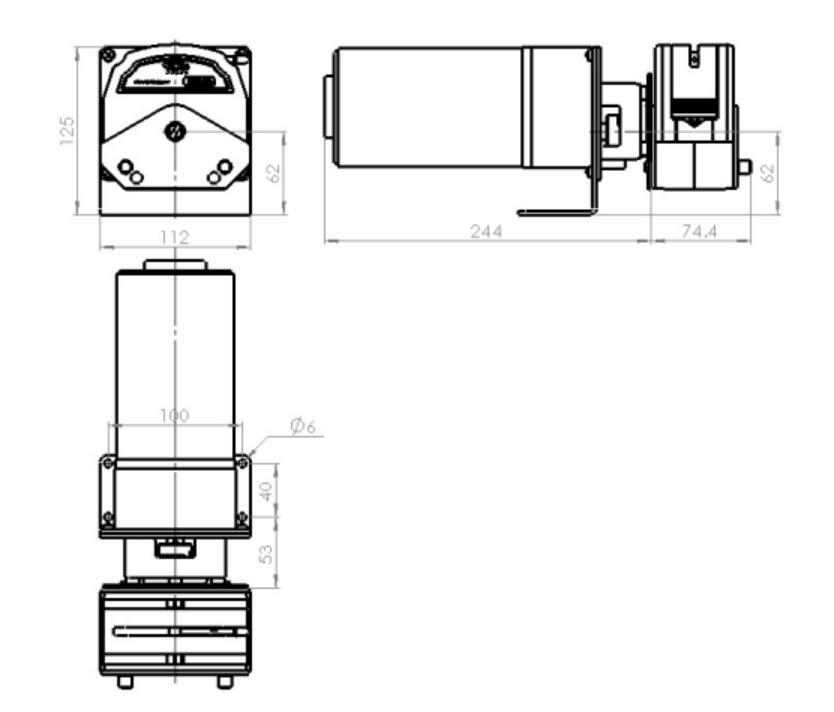

Dimensions
