G-1Z+TH15 brushed DC motor
Category:
- Product Description
G-1Z+TH15 brushed DC motor
-
- Commodity name: G-1Z+TH15 brushed DC motor
Flow range: ≤178.1 mL/min, driven by DC geared motor, fixed speed
Product Introduction
◆ Flow range: ≤178.1mL/min
◆ DC geared motor drive
◆ Fixed speed, multiple speeds optional, spring pump head, long hose life
◆ Longer motor life, higher reliability
◆ 12V or 24V DC power supply motor optional
Technical Parameters
Product Model G-1Z+TH15 Applicable Pump Head TH15A (pipe clamp structure), TH15B (pipe fitting structure) Speed Control Fixed speed Multiple speeds optional 5rpm, 10rpm, 15rpm, 20rpm, 25rpm, 30rpm, 40rpm, 50rpm, 60rpm, 80rpm, 100rpm Adaptable Hose 13#, 14#, 19#, 16#, 25# Applicable Power Supply AC220V Working Environment 0-40℃, Relative humidity: <80% Weight 1200g Selection Guide
Product Model
Pump Head Roller Number
Optional Channel
Hose
Speed Range (RPM)
Flow Range (mL/min)
Recommended Selection
G-1Z+TH15
2
1
13#
≤110
≤7.30
High Precision
Liquid transport, slightly larger flow rate
14#
≤27.30
19#
≤50.88
16#
≤84.26
25#
≤178.1

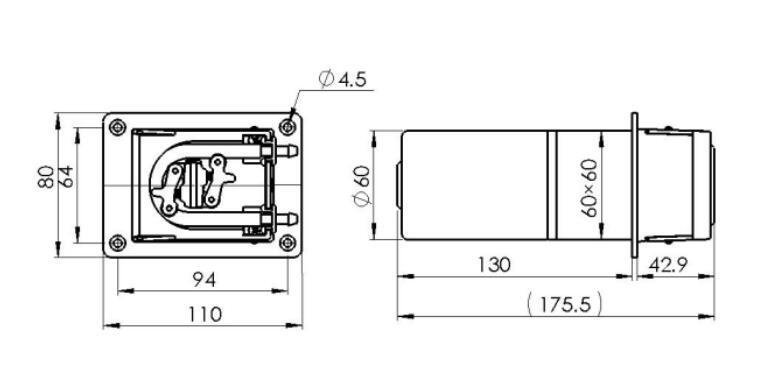

Dimensions
