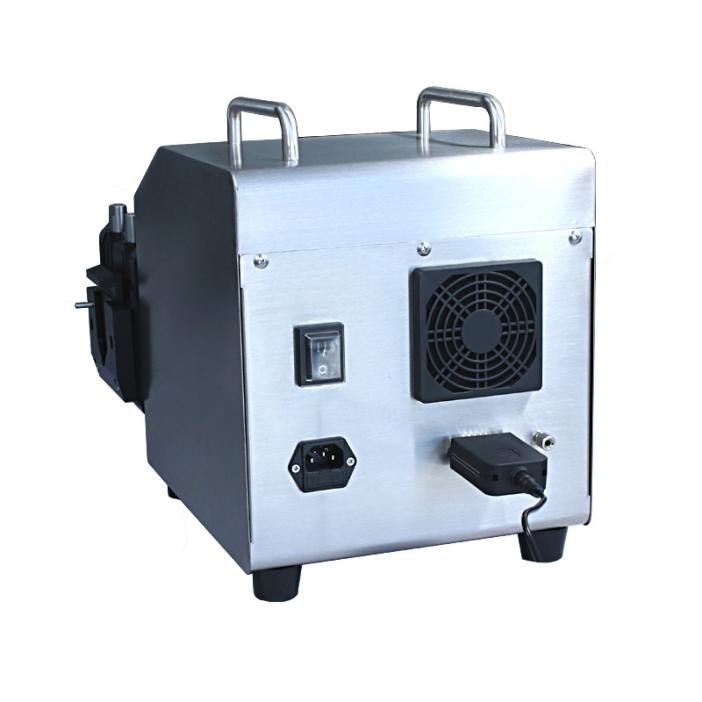

CF350P+KZ48

Product Description

Commodity name: CF350P+KZ48

Product Introduction

◆ Four operating modes: flow rate mode, timed constant speed, constant speed fixed volume, and timed fixed volume;

◆ Simultaneous operation with industrial touch screen and membrane keypad, simple, convenient and fast;

◆ Suitable for high-precision liquid transfer ≤38L/min, and 500-5000mL liquid filling;

◆ Servo motor drive, effectively ensuring liquid transfer and filling accuracy;

◆ Liquid volume accumulation, appointment filling, multiple schemes can be pre-stored for easy access;

◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;

Typical Applications

◆ Industrial high-precision liquid transfer;

◆ High-flow liquid filling;

◆ Drug liquid transfer and filling;

◆ Matching liquid filling production line;

Control Panel

◆ Industrial touch screen combined with membrane keypad operation

Flow rate mode, timed constant speed, constant speed fixed volume, timed fixed volume four operating modes

Four physical buttons: scheme, full speed, direction, start/stop, for more convenient operation

◆ Flow Rate Mode

Set the flow rate value, flow rate acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;

Total liquid volume accumulation and total running time accumulation functions;

Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;

Scheme storage and access function

◆ Timed Constant Speed Mode

Set the flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;

Total liquid volume accumulation and total running time accumulation functions;

Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;

Scheme storage and access function

◆ Constant Speed Fixed Volume Mode

Input parameters such as filling liquid volume, flow rate, interval time, and number of runs, suitable for high-precision liquid filling;

Total liquid volume accumulation and total running time accumulation functions;

Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;

Scheme storage and access function

◆ Timed Fixed Volume Mode

Input parameters such as filling liquid volume, running time, interval time, and number of runs, suitable for high-precision liquid filling;

Total liquid volume accumulation and total running time accumulation functions;

Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;

Scheme storage and access function

Technical Parameters

Driver Model	CF350P
Applicable Pump Head	KZ48
Flow Rate Range	0.008-38L/min
Speed Range	0.2-350rpm
Operating Mode	Flow rate mode, timed constant speed, constant speed fixed volume, timed fixed volume
Liquid Volume Accumulation	Total liquid volume accumulation and reset function
Time Accumulation	Total running time accumulation and reset function
Scheme Storage	Save the current running scheme for easy access
Liquid Volume Calibration	Input the measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling
Back Suction Speed Setting	Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm
Back Suction Angle Setting	Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0
Screen Lock Function	Screen lock to prevent accidental touch or arbitrary parameter changes
Full Speed Function	Fast liquid filling and emptying hose
Direction Control	Liquid transfer direction control
Appointment Start	Set date and time for appointment start
Timed Start	Start at the set time
Language Setting	Chinese and English interface switching
Restore Factory Settings	Restore factory settings function
Speed Control Accuracy Error	≤0.2%
External Signal Input	0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode)
Start/Stop Control	External signal start/stop control, switch quantity and voltage mode optional
Foot Switch	Optional foot switch to control start/stop
Communication Function	Uses Modbus RTU communication protocol
Filling Time	0.1s-9999.9Hr
Interval Time	0.1s-9999.9Hr
Operation Method	4.3-inch industrial touch screen combined with membrane keypad
Allocation Times	0-99999 times (0 for infinite loop)
Working Environment	Temperature 0-40℃, relative humidity <80%
Applicable Power Supply	AC90-260V, 50/60Hz

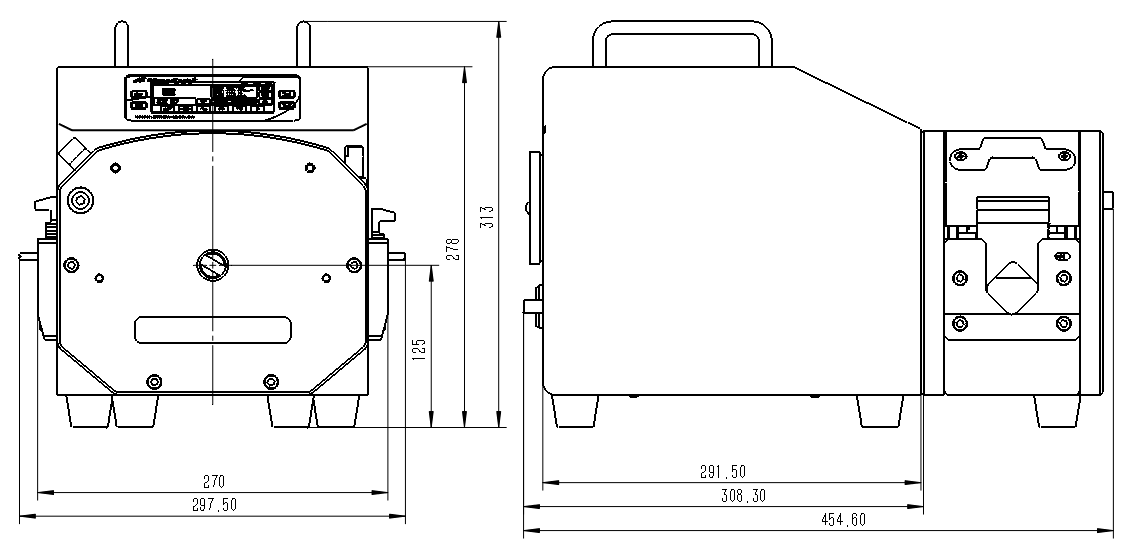

Overall Dimensions	455297313mm
Weight	20kg
Protection Level	IP31
