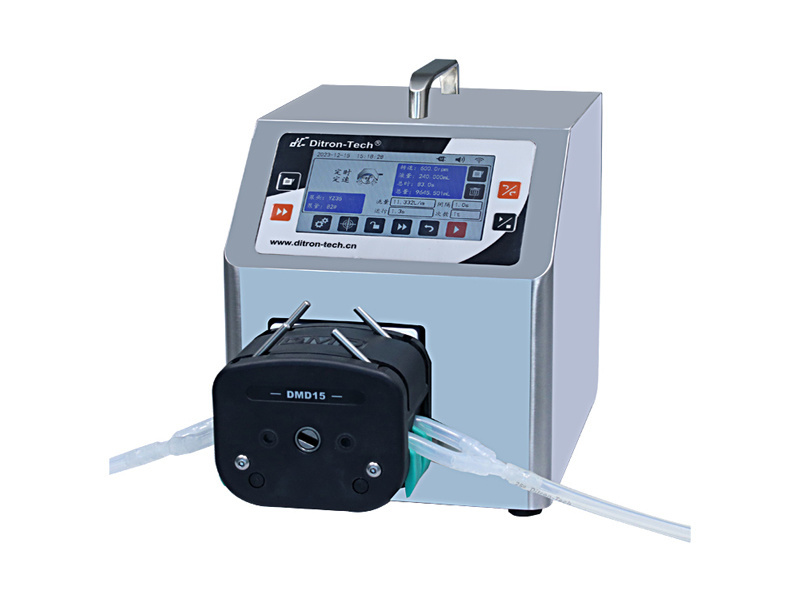

CF100B, CF300B, CF600B
-
- Commodity name: CF100B, CF300B, CF600B
Suitable for high-precision liquid transfer ≤3200mL/min and 0.05-200mL liquid filling; four working modes: flow mode, timed constant speed, constant speed constant volume, and timed constant volume; industrial touch screen and film buttons can be operated simultaneously, simple, convenient and fast;
Product Introduction
◆ Flow Range: CL100B: 0.005-560mL/min
CL300B: 0.013-1700mL/min
CL600B: 0.013-3200mL/min
◆ Four operation modes: flow mode, timed constant speed, constant speed constant volume, and timed constant volume;
◆ Industrial touch screen and film button synchronous operation, simple and convenient;
◆ Suitable for high-precision liquid transfer ≤3200mL/min, and 0.05-200mL liquid filling;
◆ Adaptable to various pump heads to meet different needs, including YZ15(25), DG series, DMD15, 313D, YT15(25) pump heads;
◆ Liquid volume accumulation, appointment filling, multiple schemes can be pre-stored for easy access;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc;
Typical Applications
◆ High-precision liquid transfer in laboratories;
◆ Dispensing of chemical reagents and medicinal liquids, such as diagnostic reagents and oral liquids;
◆ Cosmetic dispensing, such as perfume, lip gloss, essential oils, etc;
◆ Matching liquid filling production line;
Control Panel

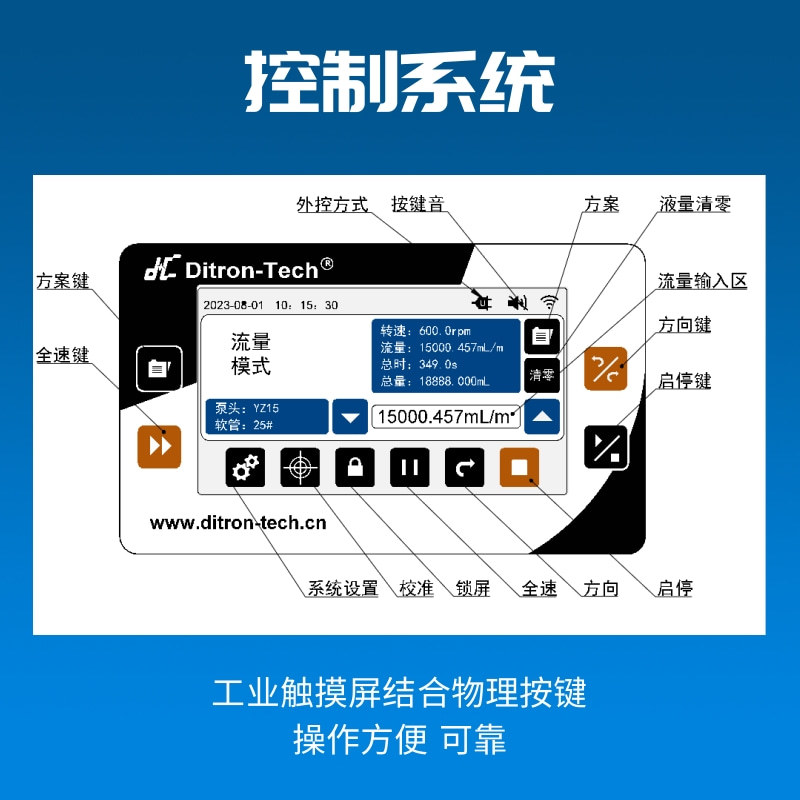

◆ Industrial touch screen combined with film button operation
Flow mode, timed constant speed, constant speed constant volume, timed constant volume four working modes
Four physical buttons: scheme, full speed, direction, start/stop, for more convenient operation
◆ Flow Mode
Set the flow rate value, flow acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input the measured flow rate value to complete the flow calibration;
Scheme storage and access function
◆ Timed Constant Speed Mode
Set the flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input the measured flow rate value to complete the flow calibration;
Scheme storage and access function
◆ Constant Speed Constant Volume Mode
Input parameters such as filling liquid volume, flow rate, interval time, and number of runs, suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and access function
◆ Timed Constant Volume Mode
Input parameters such as filling liquid volume, running time, interval time, and number of runs, suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and access function
Technical Parameters
Driver Model CF100B CF300B CF600B Applicable Pump Head DG-xA, DG-xB, YZ15, YZ15-6, YZ25, 313D, DMD15, YT15, YT25 YZ15, YZ15-6, YZ25, 313D, DMD15, YT15, YT25 YZ15, YZ25, 313D, DMD15, YT15, YT25 Flow Range 0.005-560mL/min 0.013-1700mL/min 0.013-3200mL/min Speed Range 0.2-100rpm 0.2-300rpm 0.2-600rpm Working Mode Flow mode, timed constant speed, constant speed constant volume, timed constant volume Liquid Volume Accumulation Total liquid volume accumulation and reset function Time Accumulation Total running time accumulation and reset function Scheme Storage Save the current running scheme for easy access Liquid Volume Calibration Input the measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Lock the screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Fast liquid filling and emptying tubing Direction Control Liquid transfer direction control Scheduled Start Set the date and time for scheduled start Timed Start Start at the set time Language Setting Switch between Chinese and English interfaces Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed control function (only for flow mode) Start/Stop Control External signal start/stop control, with optional switch quantity and voltage modes Foot Switch Optional foot switch for start/stop control Communication Function Uses Modbus RTU communication protocol Filling Time 0.1s-9999.9Hr Interval Time 0.1s-9999.9Hr Operation Mode 4.3-inch industrial touch screen combined with membrane keypad Number of Dispensing Cycles 0-99999 times (0 for infinite loop) Operating Environment Temperature 0-40℃, relative humidity <80% Applicable Power Supply AC90-260V, 50/60Hz Driver Dimensions 220x162x206mm Weight 4.5kg Protection Level IP31 External Signal Control

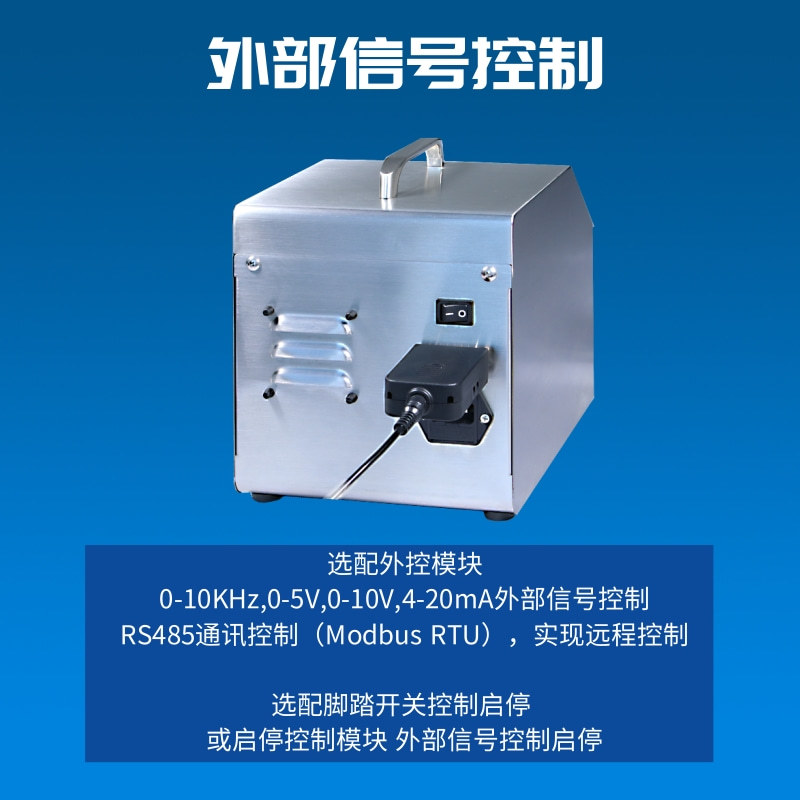

◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed control;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch quantity or voltage signal control start/stop, or foot switch control start/stop
Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Number of Channels
Tubing
Speed Range (RPM)
Flow Rate Range (mL/min)
CF100B
DG-1(2,4,6,8,12)A
3
1,2,4,6,8,12
0.6×1
0.2-100
0.006-3.27
1×1
0.014-6.45
2×1
0.04-20.60
3×1
0.08-37.5
DG-1(2,4,6,8,12)B
10
1,2,4,6,8,12
0.6×1
0.0052-2.64
1×1
0.012-5.96
2×1
0.034-16.19
3×1
0.056-27.65
YZ15
3
1,2
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
YZ15-6
6
1,2
13#
0.012-6.28
14#
0.04-18.5
19#
0.074-36.7
16#
0.128-63.8
25#
0.24-118.5
17#
0.36-177.3
18#
0.44-224.2
YZ25
3
1,2
15#
0.34-154
24#
0.58-271
35#
0.74-370
313D
3
1
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
DMD15
3
1
2*13#
0.026-13
2*14#
0.098-46
2*19#
0.19-107
2*16#
0.32-169
2*25#
0.68-358
2*17#
1.1-570
YT15
3
1,2
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
YT25
3
1,2
15#
0.35-174
24#
0.58-292
35#
0.79-395
36#
1.1-545
CF300B
YZ15
3
1,2
13#
0.2-300
0.016-23.1
14#
0.054-87
19#
0.104-163.5
16#
0.172-267.1
25#
0.36-555
17#
0.64-969
18#
0.82-1200
YZ15-6
6
1,2
13#
0.012-18.6
14#
0.04-56.1
19#
0.074-112.5
16#
0.128-192
25#
0.24-366
17#
0.36-537
18#
0.44-699
YZ25
3
1,2
15#
0.34-522
24#
0.58-876
35#
0.74-1185
313D
3
1
13#
0.016-23.1
14#
0.054-87
19#
0.104-163.5
16#
0.172-267.1
25#
0.36-555
17#
0.64-969
18#
0.82-1200
DMD15
3
1
2*13#
0.026-39
2*14#
0.098-138
2*19#
0.19-321
2*16#
0.32-507
2*25#
0.68-1074
2*17#
1.1-1719
YT15
3
1,2
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
YT25
3
1,2
15#
0.35-522
24#
0.58-876
35#
0.79-1185
36#
1.1-1635
CF600B
YZ15
3
1,2
13#
0.2-600
0.016-46.1
14#
0.054-178.1
19#
0.104-336.9
16#
0.172-556.2
25#
0.36-1176.6
17#
0.64-2111.6
18#
0.128-2400
YZ25
3
1,2
15#
0.34-1066
24#
0.58-1856
35#
0.74-2370
313D
3
1
13#
0.016-46.1
14#
0.054-178.1
19#
0.104-336.9
16#
0.172-556.2
25#
0.36-1176.6
17#
0.64-2111.6
18#
0.128-2400
DMD15
3
1
2*13#
0.026-47.07
2*14#
0.098-266.45
2*19#
0.19-564
2*16#
0.32-941
2*25#
0.68-1371
2*17#
1.1-3200
YT15
3
1,2
13#
0.016-46.1
14#
0.054-178.1
19#
0.104-336.9
16#
0.172-556.2
25#
0.36-1176.6
17#
0.64-2111.6
18#
0.128-2400
YT25
3
1,2
15#
0.34-1066
24#
0.58-1856
35#
0.74-2370
36#
1.1-3200

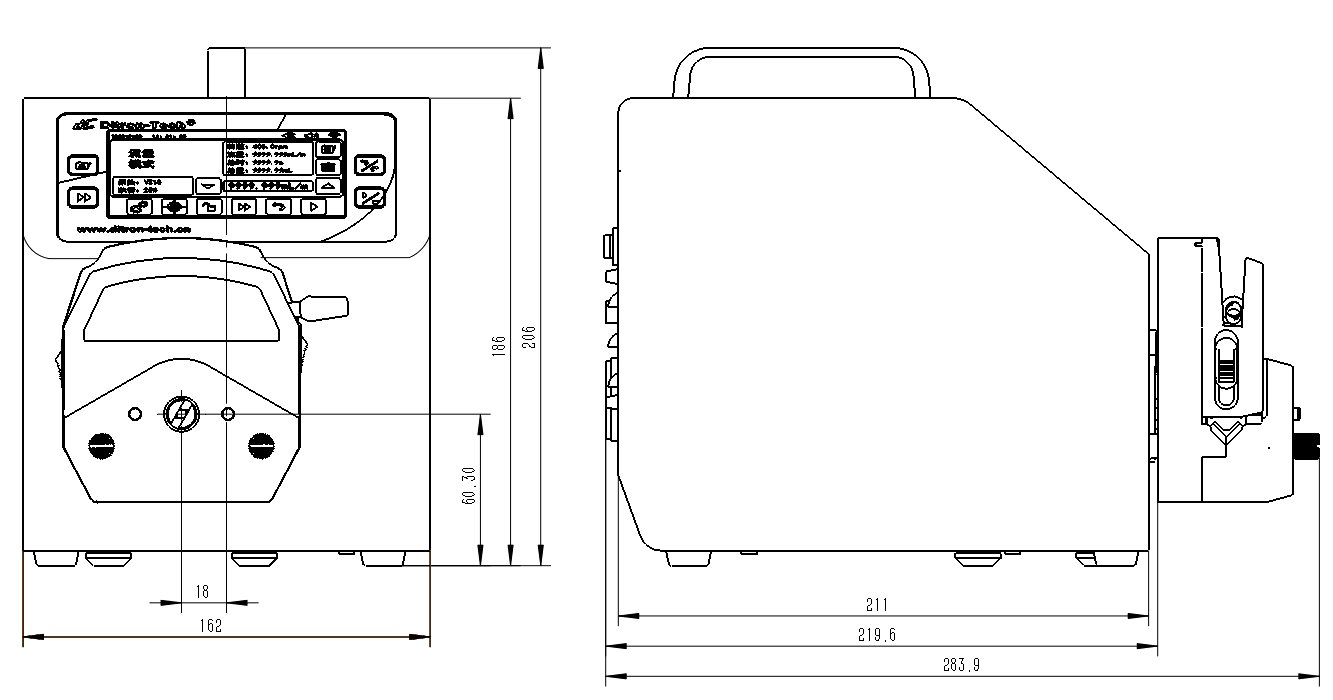

Dimensions
