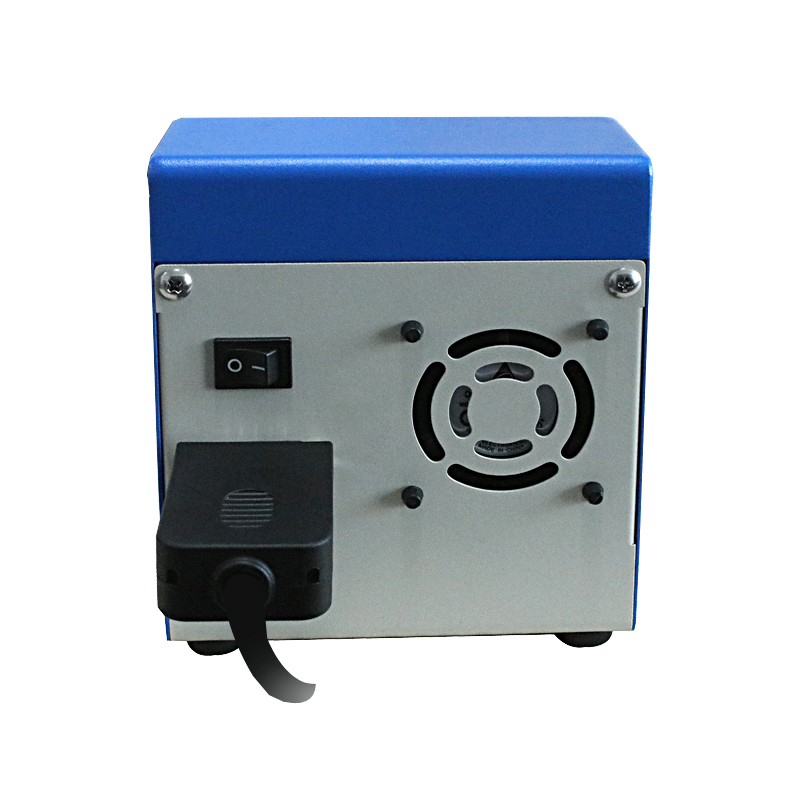

CF100W, CF300W, CF600W
-
- Commodity name: CF100W, CF300W, CF600W
Suitable for high-precision liquid transfer ≤1000mL/min and 0.01-50mL liquid filling; four working modes: flow mode, timed constant speed, constant speed constant volume, and timed constant volume; industrial touch screen
TH10 Pump Head KZ15 Pump Head mYZ15 Pump Head JZ15 Pump Head Product Introduction
◆ Four operating modes: flow rate mode, timed speed control, constant speed and volume, and timed volume control;
◆ Industrial touch screen, simple and convenient operation;
◆ Suitable for high-precision liquid transfer of ≤1000mL/min, and 0.01-50mL liquid filling;
◆ Adaptable to various pump heads to meet different needs, including TH10, JZ15, mYZ15, KZ15 pump heads;
◆ Liquid volume accumulation, appointment filling, multiple schemes can be stored and easily called;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;
◆ Small size, powerful functions
Typical Applications
◆ High-precision liquid transfer in laboratories;
◆ Dispensing of chemical reagents and medicinal liquids, such as diagnostic reagents and oral liquids;
◆ Cosmetic dispensing, such as perfumes, lip gloss, essential oils, etc.;
◆ Matching liquid filling production line;
Control Panel
◆ Flow Rate Mode
Set the flow rate value, flow rate acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;
Scheme storage and call function
◆ Timed Speed Control Mode
Set the flow rate value, running time, interval time, and number of runs, suitable for timed and constant speed liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;
Scheme storage and call function
◆ Constant Speed and Volume Mode
Input parameters such as filling liquid volume, flow rate, interval time, and number of runs, suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and call function
◆ Timed Volume Control Mode
Input parameters such as filling liquid volume, running time, interval time, and number of runs, suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and call function
Technical Parameters
Driver Model CF100W CF300W CF600W Applicable Pump Head TH10, JZ15, KZ15, mYZ15 JZ15, KZ15, mYZ15 mYZ15-13, mYZ15-23 Flow Rate Range 0.003-207mL/min 0.005-600mL/min 0.012-1070mL/min Speed Range 0.2-100rpm 0.2-300rpm 0.2-600rpm Operating Mode Flow rate mode, timed speed control, constant speed and volume, timed volume control Liquid Volume Accumulation Total liquid volume accumulation and reset function Time Accumulation Total running time accumulation and reset function Scheme Storage Save the current running scheme for easy access Liquid Volume Calibration Input the measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Lock the screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Rapid filling and emptying of liquid tubing Direction Control Liquid transfer direction control Scheduled Start Set the date and time for scheduled start Timed Start Start at the set time Language Setting Switch between Chinese and English interfaces Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode) Start/Stop Control External signal start/stop control, optional switch quantity and voltage mode Foot Switch Optional foot switch to control start/stop Communication Function Uses Modbus RTU communication protocol Filling Time 0.1s-9999.9Hr Interval time 0.1s-9999.9Hr Display mode 4.3-inch industrial touch screen Allocation times 0-99999 times (0 for infinite loop) Working environment Temperature 0-40℃, relative humidity <80% Applicable power supply DC24V, 1A; standard power adapter, AC90-260V, 50/60Hz Driver size 149×134×154mm Weight 1.5kg Protection level IP31 External signal control
◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch quantity or voltage signal control start/stop, or foot switch control start/stop
Selection guide
Driver
Applicable Pump Head
Number of pump head rollers
Number of channels
Tube
Speed range (RPM)
Flow range (mL/min)

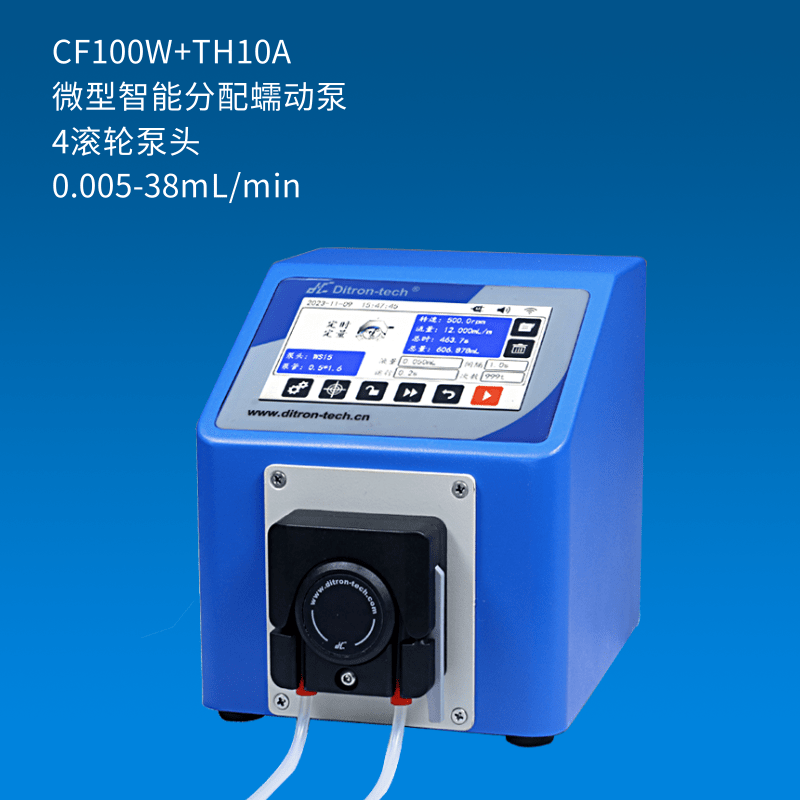

CF100
TH10A
4
1
0.6×1
0.2-100
0.005-2.5
1×1
0.012-6.2
2×1
0.04-20
3×1
0.076-38
TH10B
8
1
0.6×1
0.003-1.7
1×1
0.008-4.2
2×1
0.025-12.7
3×1
0.042-21

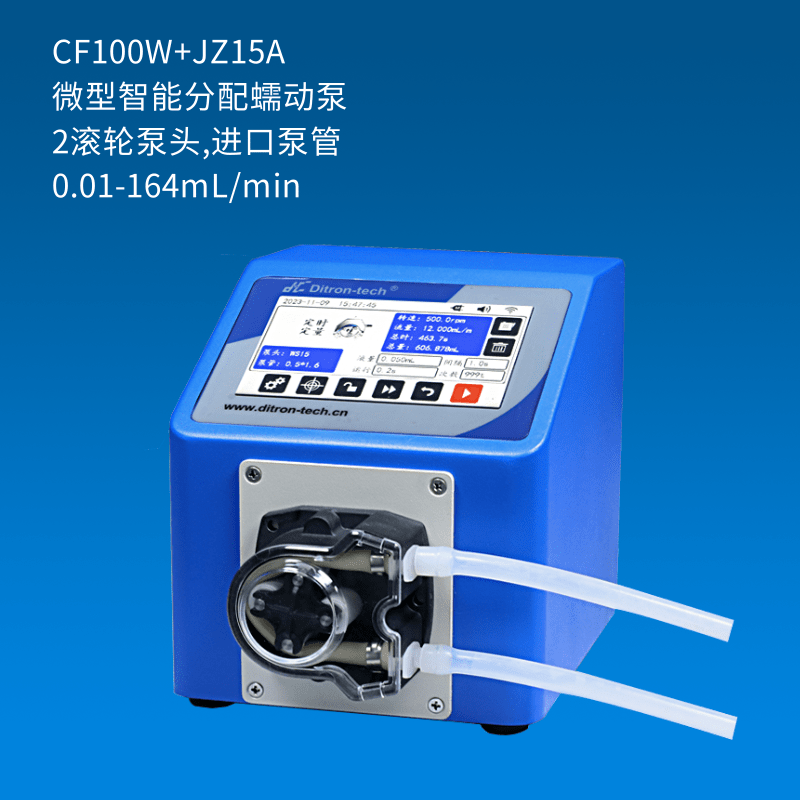

JZ15A
2
1
13#
0.01-4.8
14#
0.032-16.45
19#
0.07-35.87
16#
0.12-62.86
25#
0.20-108.49
17#
0.28-164.13
JZ15B
4
1
13#
0.008-4.01
14#
0.032-16.45
19#
0.052-25.75
16#
0.08-40.18
25#
0.12-62.75
17#
0.15-98.37
mYZ15-13
3
1
13#
0.012-6.32
14#
0.038-19
19#
0.086-43
16#
0.13-66
25#
0.28-141
17#
0.41-207
mYZ15-23
3
2
13#
0.012-6.32
14#
0.038-19
19#
0.086-43
16#
0.13-66
mYZ15-16
6
1
13#
0.009-4.7
14#
0.028-14.1
19#
0.067-33.7
16#
0.094-47
25#
0.17-87
17#
0.22-112
mYZ15-26
6
2
13#
0.009-4.7
14#
0.028-14.1
19#
0.067-33.7
16#
0.094-47

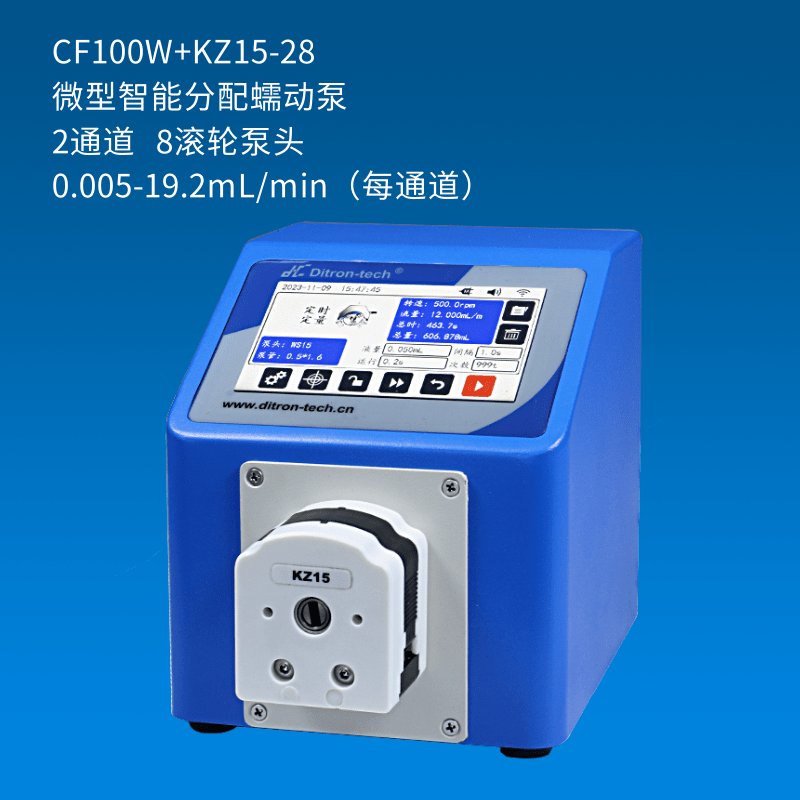

KZ15-14
KZ15-24
4
1,2
13#
0.007-3.6
14#
0.025-12.8
19#
0.054-26.9
16#
0.085-42.5
KZ15-18
KZ15-28
8
1,2
13#
0.005-2.7
14#
0.016-8.1
19#
0.028-14.2
16#
0.038-19.2
CF300W
JZ15A
2
1
13#
0.2-300
0.01-14.4
14#
0.032-49.59
19#
0.07-108.56
16#
0.12-194.87
25#
0.20-340.68
17#
0.28-513.77
JZ15B
4
1
13#
0.008-12.0
14#
0.022-34.88
19#
0.052-77.04
16#
0.080-121.88
25#
0.12-192.39
17#
0.15-253.09
mYZ15-13
3
1
13#
0.012-19.2
14#
0.038-60
19#
0.086-133.7
16#
0.13-205
25#
0.28-443
17#
0.41-620
mYZ15-23
3
2
13#
0.012-19.2
14#
0.038-60
19#
0.086-133.7
16#
0.13-205
mYZ15-16
6
1
13#
0.009-14.1
14#
0.028-42.2
19#
0.067-100.6
16#
0.094-144
25#
0.17-257
17#
0.22-327
mYZ15-26
6
2
13#
0.009-14.1
14#
0.028-42.2
19#
0.067-100.6
16#
0.094-144
KZ15-14
KZ15-24
4
1,2
13#
0.007-10.9
14#
0.025-38.4
19#
0.054-76
16#
0.085-128
KZ15-18
KZ15-28
8
1,2
13#
0.005-8.05
14#
0.016-24.1
19#
0.028-41.8
16#
0.038-57.4
CF600W
mYZ15-13
3
1
13#
0.2-600
0.012-37.8
14#
0.038-114
19#
0.086-258
16#
0.13-396
25#
0.28-744
17#
0.41-1070
mYZ15-23
3
2
13#
0.012-37.8
14#
0.038-114
19#
0.086-258
16#
0.13-396
