CL600S+KZ25
Category:
Tags:
- Product Description
CL600S+KZ25
-
- Commodity name: CL600S+KZ25
Flow range: 0.59-6000mL/min, two working modes: flow mode and timed constant speed; industrial touch screen and film button synchronous operation, simple, convenient and fast;
Product Introduction
◆ Two working modes: flow rate mode and timed constant speed mode;
◆ Simultaneous operation with industrial touch screen and membrane keypad, simple, convenient and fast;
◆ Suitable for high-precision liquid transfer ≤6000mL/min;
◆ Servo motor drive, effectively ensuring liquid transfer accuracy;
◆ Adaptable to various pump heads to meet different needs, including KZ25, DMD25, YZ15, YZ25 pump heads;
◆ Liquid volume accumulation, appointment filling, multiple schemes can be preset for easy access;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc;
Typical Applications
◆ Industrial high-precision liquid transfer;
◆ Chemical reagent and medicine dispensing, such as diagnostic reagents and oral liquids;

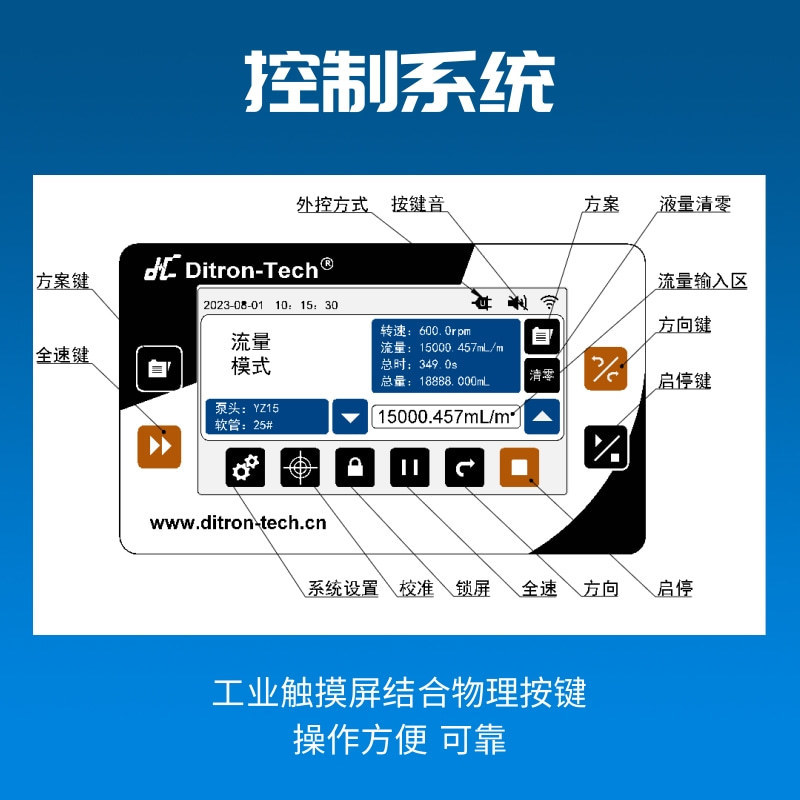

Control Panel
◆ Industrial touch screen combined with membrane keypad operation
Flow rate mode, timed constant speed, 2 working modes
Four physical buttons: scheme, full speed, direction, start/stop, for more convenient operation
◆ Flow Rate Mode
Set the flow rate value, flow rate acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;
Scheme storage and access function
◆ Timed Constant Speed Mode
Set the flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;
Scheme storage and access function
Technical Parameters
Driver Model CL600S CL350S Applicable Pump Heads KZ25, YZ15, YZ25 DMD25 Flow Rate Range 0.59-6000mL/min 0.09-4160mL/min Speed Range 0.2-600rpm 0.2-350rpm Pump Head Features Suitable for large flow liquid transfer Special low-pulsation pump head, suitable for high-precision liquid transfer Working Mode Flow rate mode, timed constant speed Liquid Volume Accumulation Total liquid volume accumulation and reset function Time Accumulation Total running time accumulation and reset function Scheme Storage Save the current running scheme for easy access Flow Rate Calibration Input the measured flow rate for automatic calibration to achieve higher precision liquid transfer Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Lock the screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Liquid quick filling and draining hose Direction Control Liquid transfer direction control Appointment Start Set the date and time for appointment start Timed Start Start at the set time Language Setting Chinese and English interface switching Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode) Start/Stop Control External signal start/stop control, optional switch and voltage mode Foot Switch Optional foot switch to control start/stop Communication Function Uses Modbus RTU communication protocol Running Time 0.1s-9999.9Hr Interval Time 0.1s-9999.9Hr Operation Mode 4.3-inch industrial touch screen combined with membrane keypad Number of Runs 0-99999 times (0 for infinite loop) Working Environment Temperature 0-40℃, relative humidity <80% Applicable Power Supply AC90-260V, 50/60Hz Driver Dimensions 230x167x206mm Weight 5.5kg Protection Level IP31 External Signal Control
◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch quantity or voltage signal control start/stop, or foot switch control start/stop
Selection Guide
Driver
Applicable Pump Heads
Number of pump head rollers
Number of channels
Tubing
Speed range (RPM)
Flow range (mL/min)
CL600S
KZ25
3
1,2
15#
0.2-600
0.016-46.1
24#
0.054-178.1
35#
0.104-336.9
36#
0.172-556.2
DMD25
6
1
1.6×2.4
0.2-350
0.086-150.4
3.2×2.4
0.46-805
2*15#
0.86-1505
2*24#
1.37-2397
2*35#
1.68-2950
2*36#
2.38-4165
Dimensions
