CL600G+YZ35-13

Flow range: Suitable for ≤12000mL/min, with two operation modes: flow mode and timed constant speed; industrial touch screen and film buttons operate synchronously

Category:

Intelligent flow peristaltic pump

Tags:

Peristaltic pump

Ditron-tech

sales3@ditrontech.com

Get a quote

Product Manual

CL600G+YZ35-13

Product Description

Commodity name: CL600G+YZ35-13

Flow range: Suitable for ≤12000mL/min, with two operation modes: flow mode and timed constant speed; industrial touch screen and film buttons operate synchronously

Product Introduction

◆ Two operating modes: flow rate mode and timed constant speed mode;

◆ Simultaneous operation with industrial touch screen and membrane keypad, simple, convenient and fast;

◆ Suitable for high-precision liquid transfer ≤12000mL/min;

◆ Servo motor drive, effectively ensuring liquid transfer and filling accuracy;

◆ Liquid volume accumulation, flow rate calibration, multiple schemes can be pre-stored for easy access;

◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;

Typical Applications

◆ Industrial high-precision liquid transfer;

◆ High-flow liquid transfer;

Control Panel

◆ Industrial touch screen combined with membrane keypad operation

Flow rate mode and timed constant speed mode

Four physical buttons for scheme, full speed, direction, and start/stop, making operation more convenient

◆ Flow Rate Mode

Set the flow rate value, with flow rate acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;

Total liquid volume accumulation and total running time accumulation functions;

Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;

Scheme storage and access function

◆ Timed Constant Speed Mode

Set the flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;

Total liquid volume accumulation and total running time accumulation functions;

Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;

Scheme storage and access function

Technical Parameters

Driver Model	CL600G
Applicable Pump Head	1 or 2 YZ35 pump heads
Flow Rate Range	2.5-12000mL/min
Speed Range	0.2-600rpm
Operating Mode	Flow rate mode, timed constant speed
Liquid Volume Accumulation	Total liquid volume accumulation and reset function
Time Accumulation	Total running time accumulation and reset function
Scheme Storage	Save the current running scheme for easy access
Flow Rate Calibration	Input the measured flow rate, automatic calibration, achieving higher precision liquid transfer
Back Suction Speed Setting	Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm
Back Suction Angle Setting	Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0
Screen Lock Function	Screen lock to prevent accidental touches or arbitrary parameter changes
Full Speed Function	Rapid filling and emptying of liquid hoses
Direction Control	Liquid transfer direction control
Scheduled Start	Set date and time for scheduled start
Timed Start	Start at the set time
Language Setting	Switch between Chinese and English interfaces
Restore Factory Settings	Restore factory settings function
Speed Control Accuracy Error	≤0.2%
External Signal Input	0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode)
Start/Stop Control	External signal start/stop control, switch quantity and voltage mode optional
Foot Switch	Optional foot switch for start/stop control
Communication Function	Uses Modbus RTU communication protocol
Running Time	0.1s-9999.9Hr
Interval Time	0.1s-9999.9Hr
Operating Method	4.3-inch industrial touch screen combined with membrane keypad
Number of Runs	0-99999 times (0 for infinite loop)
Operating Environment	Temperature 0-40℃, relative humidity <80%
Applicable Power Supply	AC90-260V, 50/60Hz

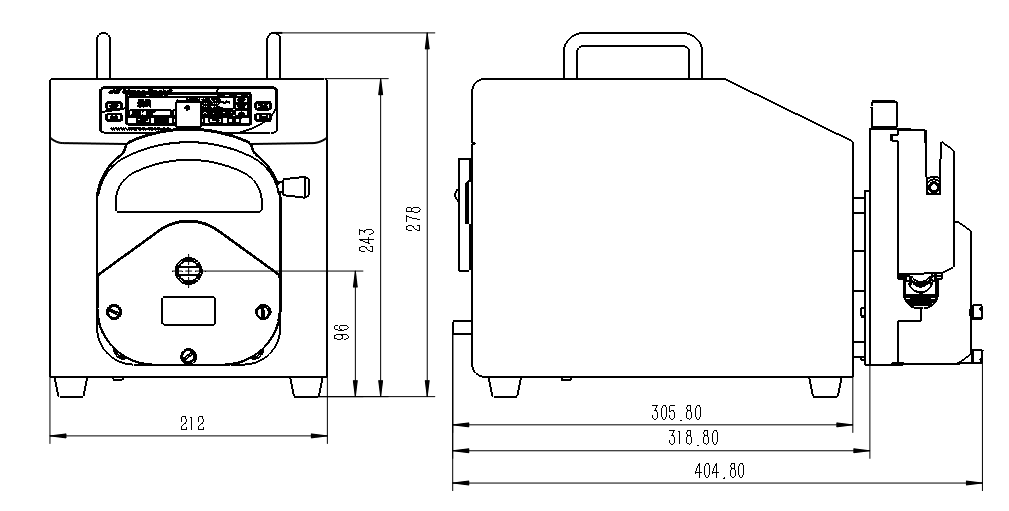

Driver Dimensions	319212278mm
Weight	8kg
Protection Level	IP31
