CL350P+KZ48

Product Description

Commodity name: CL350P+KZ48

Flow range: suitable for ≤38L/min; Flow mode: two operation modes, timing and constant speed; Industrial touch screen and film buttons can be operated synchronously

Product Introduction

◆ Two operating modes: flow rate mode and timed constant speed mode;

◆ Simultaneous operation of industrial touch screen and membrane keypad, simple, convenient and fast;

◆ Suitable for high-precision liquid transfer ≤38L/min;

◆ Servo motor drive, effectively ensuring liquid transfer and filling accuracy;

◆ Liquid volume accumulation, flow calibration, multiple schemes can be pre-stored for easy access;

◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;

Typical Applications

◆ Batch liquid transfer;

◆ Drug liquid transfer;

Control Panel

◆ Industrial touch screen combined with membrane keypad operation

Flow rate mode and timed constant speed, two operating modes

Four physical buttons for scheme, full speed, direction, and start/stop, making operation more convenient

◆ Flow Rate Mode

Set flow rate value, flow acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;

Total liquid volume accumulation and total operating time accumulation functions;

Flow calibration function, input the measured flow rate value to complete the flow calibration;

Scheme storage and access function

◆ Timed Constant Speed Mode

Set flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;

Total liquid volume accumulation and total operating time accumulation functions;

Flow calibration function, input the measured flow rate value to complete the flow calibration;

Scheme storage and access function

Technical Parameters

Driver Model	CL350P
Applicable Pump Head	KZ48
Flow Range	0.008-38L/min
Speed Range	0.2-350rpm
Operating Mode	Flow rate mode, timed constant speed
Liquid Volume Accumulation	Total liquid volume accumulation and zeroing function
Time Accumulation	Total running time accumulation and zeroing function
Scheme Storage	Save the current running scheme for easy access
Flow Calibration	Input the measured flow rate, automatic calibration, achieve higher precision liquid transfer
Back Suction Speed Setting	Set back suction speed, prevent dripping after shutdown, speed range 10-300rpm
Back Suction Angle Setting	Set back suction angle, prevent dripping after shutdown, angle range 10-720°, can be set to 0
Screen Lock Function	Lock screen to prevent accidental touch or arbitrary parameter changes
Full Speed Function	Liquid fast filling and emptying hose
Direction Control	Liquid transfer direction control
Scheduled Start	Set date and time for scheduled start
Timed Start	Start at the set time
Language Setting	Switch between Chinese and English interfaces
Restore Factory Settings	Restore factory settings function
Speed Control Accuracy Error	≤0.2%
External Signal Input	0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode)
Start/Stop Control	External signal start/stop control, switch quantity and voltage mode optional
Foot Switch	Optional foot switch to control start/stop
Communication Function	Uses Modbus RTU communication protocol
Running Time	0.1s-9999.9Hr
Interval Time	0.1s-9999.9Hr
Operating Method	4.3-inch industrial touch screen combined with membrane keypad
Number of Runs	0-99999 times (0 for infinite loop)
Working Environment	Temperature 0-40℃, relative humidity <80%
Applicable Power Supply	AC90-260V, 50/60Hz

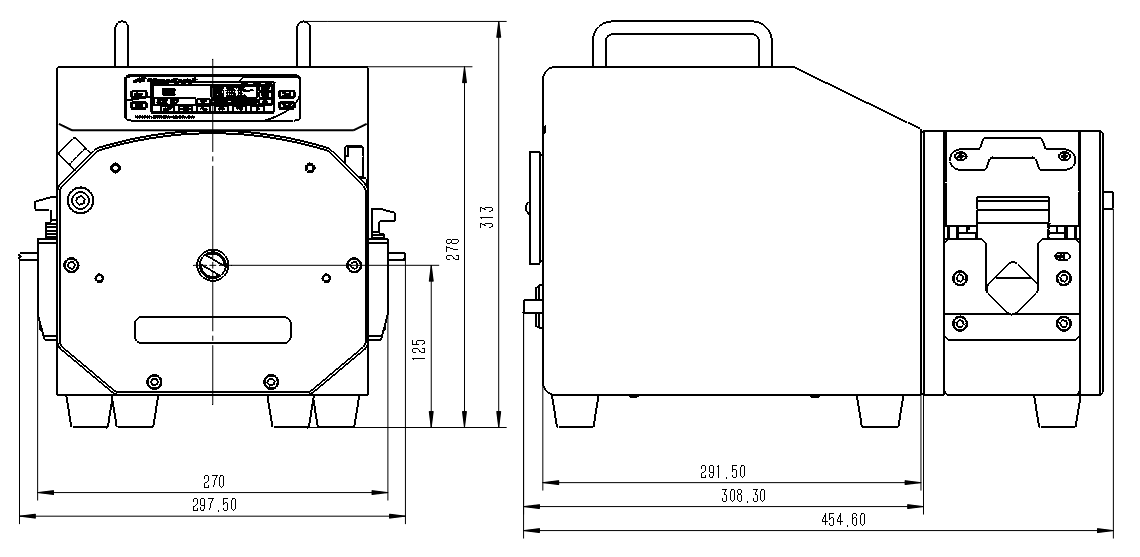

Overall Dimensions	455297313mm
Weight	20kg
Protection Level	IP31
