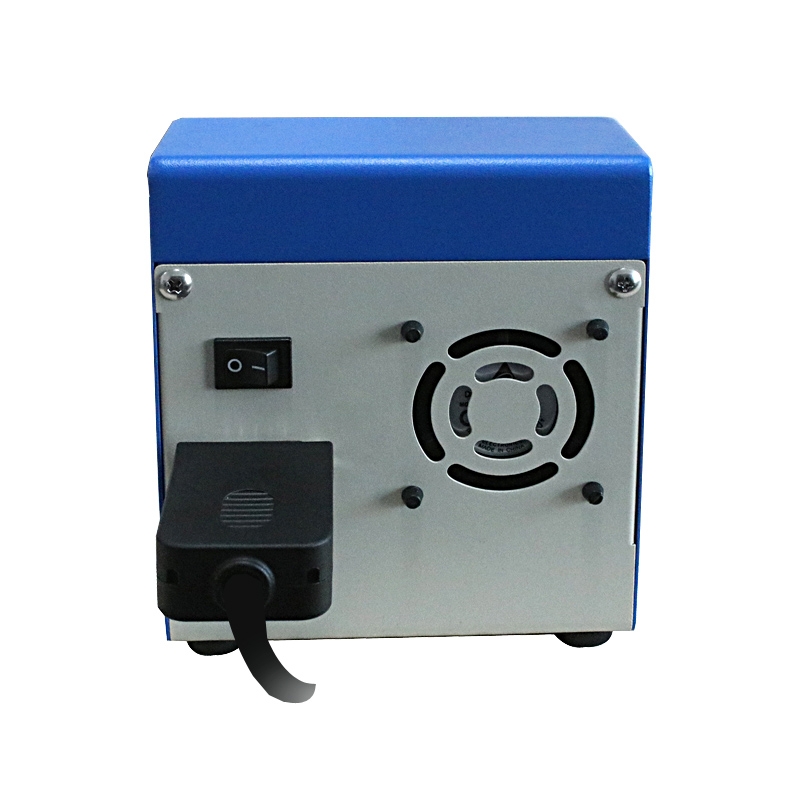

CL100W, CL300W, CL600W
-
- Commodity name: CL100W, CL300W, CL600W
Flow range: CL100W (0.003-207mL/min); CL300W (0.005-600mL/min); CL600W (0.012-1070mL/min), two working modes: timed constant speed and flow pattern.
Product Introduction
◆ Two operating modes: flow rate mode and timed constant speed mode;
◆ Industrial touch screen, simple, convenient and quick operation;
◆ Suitable for high-precision liquid transmission ≤1000mL/min;
◆ Adaptable to various pump heads to meet different needs, including TH10, JZ15, mYZ15, KZ15, WS15 pump heads;
◆ Liquid volume accumulation, flow calibration, multiple schemes can be pre-stored for easy call;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc;
◆ Small size, powerful function
Typical Applications
◆ High-precision liquid transmission in the laboratory;
◆ Transmission of chemical reagents and medicinal liquids, such as diagnostic reagents and oral liquids;
Control Panel
◆ Flow Rate Mode
Set flow rate value, flow acceleration and deceleration functions, suitable for continuous high-precision liquid transmission;
Total liquid volume accumulation and total operating time accumulation functions;
Flow calibration function, input the measured flow rate value to complete the flow calibration;
Scheme storage and call function
◆ Timed Constant Speed Mode
Set flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transmission;
Total liquid volume accumulation and total operating time accumulation functions;
Flow calibration function, input the measured flow rate value to complete the flow calibration;
Scheme storage and call function
Technical Parameters
Driver Model CL100W CL300W CL600W Applicable Pump Head TH10, JZ15, KZ15, mYZ15 JZ15, KZ15, mYZ15 mYZ15-13, mYZ15-23 Flow Range 0.003-207mL/min 0.005-600mL/min 0.012-1070mL/min Speed Range 0.2-100rpm 0.2-300rpm 0.2-600rpm Operating Mode Flow rate mode, timed constant speed Liquid Volume Accumulation Total liquid volume accumulation and zeroing function Time Accumulation Total running time accumulation and zeroing function Scheme Storage Save the current operating scheme for easy recall Flow Calibration Input the measured flow rate, automatic calibration, achieve higher precision liquid transmission Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Lock the screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Rapid filling and emptying of liquid tubing Direction Control Liquid transmission direction control Scheduled Start Set date and time for scheduled start Timed Start Start at the set time Language Setting Switch between Chinese and English interfaces Factory Reset Factory reset function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode) Start/Stop Control External signal start/stop control, switch quantity and voltage mode optional Foot Switch Optional foot switch to control start/stop Communication Function Uses Modbus RTU communication protocol Running Time 0.1s-9999.9Hr Interval Time 0.1s-9999.9Hr Display Mode 4.3-inch industrial touch screen Number of Runs 0-99999 times (0 for infinite loop) Operating Environment Temperature 0-40℃, relative humidity <80% Applicable Power Supply DC24V, 1A; standard power adapter, AC90-260V, 50/60Hz Driver Dimensions 149×134×154mm Weight 1.5kg Protection Level IP31 External Signal Control
◆ In flow rate mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, start/stop control by switch quantity or voltage signal, or start/stop control by foot switch
Selection Guide
Driver
Applicable Pump Head
Number of pump head rollers
Number of channels
Hose
Speed range (RPM)
Flow range (mL/min)
CL100W
TH10A
4
1
0.6×1
0.2-100
0.005-2.5
1×1
0.012-6.2
2×1
0.04-20
3×1
0.076-38
TH10B
8
1
0.6×1
0.003-1.7
1×1
0.008-4.2
2×1
0.025-12.7
3×1
0.042-21
JZ15A
2
1
13#
0.01-4.8
14#
0.032-16.45
19#
0.07-35.87
16#
0.12-62.86
25#
0.20-108.49
17#
0.28-164.13
JZ15B
4
1
13#
0.008-4.01
14#
0.032-16.45
19#
0.052-25.75
16#
0.08-40.18
25#
0.12-62.75
17#
0.15-98.37
mYZ15-13
3
1
13#
0.012-6.32
14#
0.038-19
19#
0.086-43
16#
0.13-66
25#
0.28-141
17#
0.41-207
mYZ15-23
3
2
13#
0.012-6.32
14#
0.038-19
19#
0.086-43
16#
0.13-66
mYZ15-16
6
1
13#
0.009-4.7
14#
0.028-14.1
19#
0.067-33.7
16#
0.094-47
25#
0.17-87
17#
0.22-112
mYZ15-26
6
2
13#
0.009-4.7
14#
0.028-14.1
19#
0.067-33.7
16#
0.094-47
KZ15-14
KZ15-24
4
1,2
13#
0.007-3.6
14#
0.025-12.8
19#
0.054-26.9
16#
0.085-42.5
KZ15-18
KZ15-28
8
1,2
13#
0.005-2.7
14#
0.016-8.1
19#
0.028-14.2
16#
0.038-19.2
CL300W
JZ15A
2
1
13#
0.2-300
0.01-14.4
14#
0.032-49.59
19#
0.07-108.56
16#
0.12-194.87
25#
0.20-340.68
17#
0.28-513.77
JZ15B
4
1
13#
0.008-12.0
14#
0.022-34.88
19#
0.052-77.04
16#
0.080-121.88
25#
0.12-192.39
17#
0.15-253.09
mYZ15-13
3
1
13#
0.012-19.2
14#
0.038-60
19#
0.086-133.7
16#
0.13-205
25#
0.28-443
17#
0.41-620
mYZ15-23
3
2
13#
0.012-19.2
14#
0.038-60
19#
0.086-133.7
16#
0.13-205
mYZ15-16
6
1
13#
0.009-14.1
14#
0.028-42.2
19#
0.067-100.6
16#
0.094-144
25#
0.17-257
17#
0.22-327
mYZ15-26
6
2
13#
0.009-14.1
14#
0.028-42.2
19#
0.067-100.6
16#
0.094-144
KZ15-14
KZ15-24
4
1,2
13#
0.007-10.9
14#
0.025-38.4
19#
0.054-76
16#
0.085-128
KZ15-18
KZ15-28
8
1,2
13#
0.005-8.05
14#
0.016-24.1
19#
0.028-41.8
16#
0.038-57.4
CL600W
mYZ15-13
3
1
13#
0.2-600
0.012-37.8
14#
0.038-114
19#
0.086-258
16#
0.13-396
25#
0.28-744
17#
0.41-1070
mYZ15-23
3
2
13#
0.012-37.8
14#
0.038-114
19#
0.086-258
16#
0.13-396

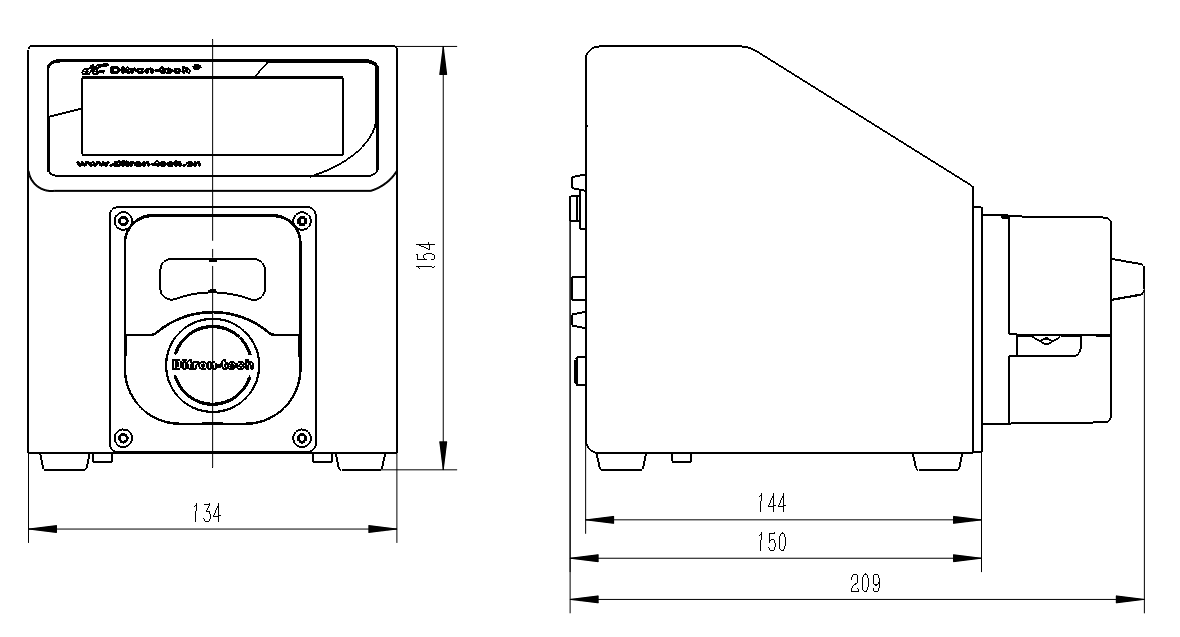

External dimensions
