CL100B, CL300B, CL600B
Category:
Tags:
- Product Description

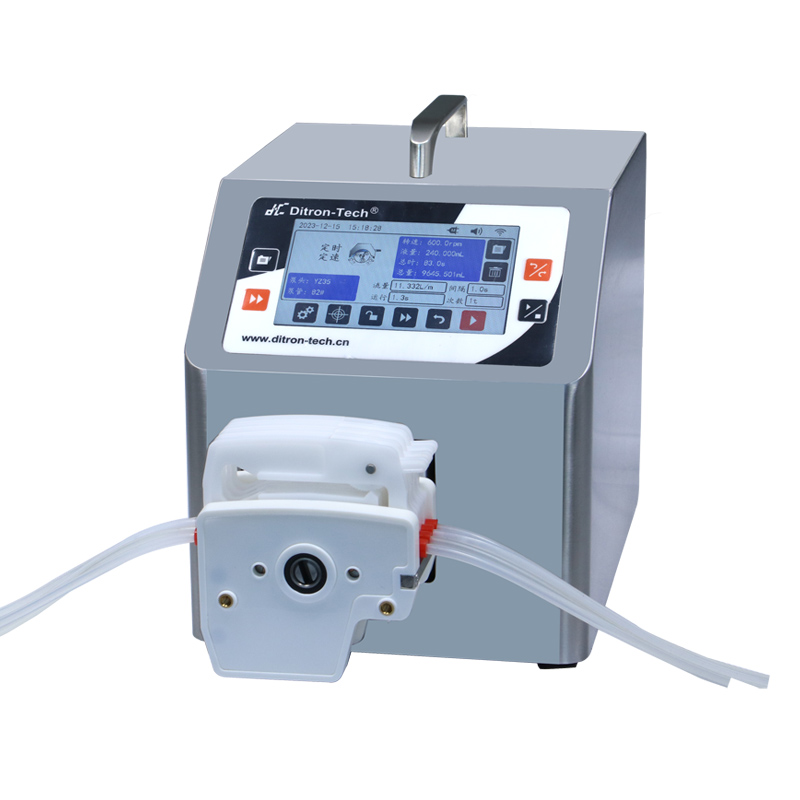

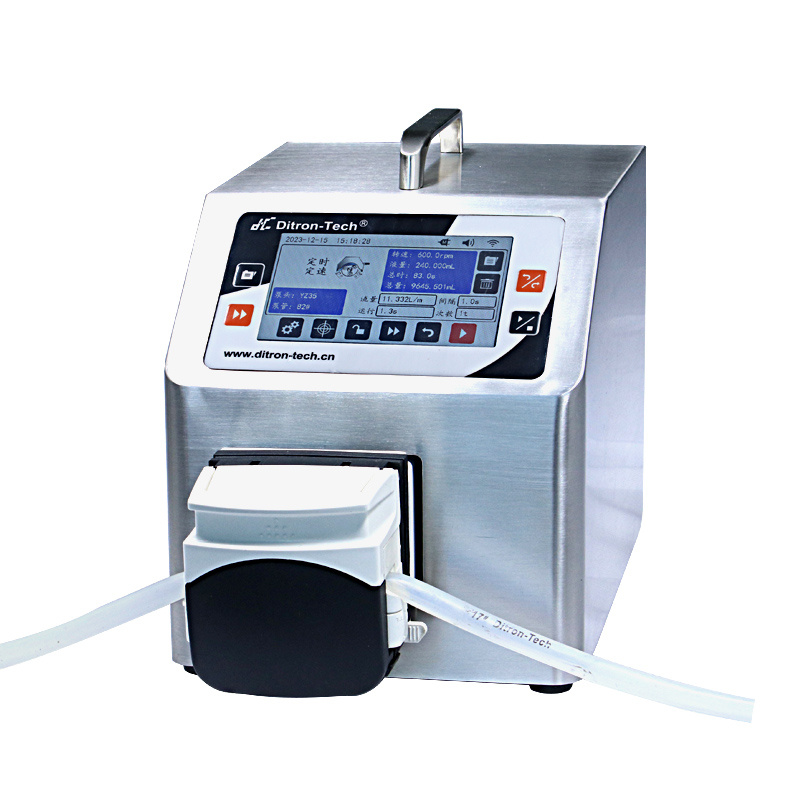

CL100B, CL300B, CL600B
-
- Commodity name: CL100B, CL300B, CL600B
Flow range (mL/min): CL100B (0.005-560), CL300B: (0.013-1700), CL600B (0.013-3200); Flow mode, two working modes of timing and constant speed; Industrial touch screen and film buttons operate synchronously, simple, convenient and fast;
Product Introduction
Flow Range: CL100B: 0.005-560mL/min
CL300B: 0.013-1700mL/min
CL600B: 0.013-3200mL/min
◆ Two operating modes: Flow Mode and Timed Speed Mode;
◆ Simultaneous operation via industrial touch screen and membrane keypad, simple, convenient, and fast;
◆ Suitable for high-precision liquid transfer ≤3200mL/min, with flow calibration function;

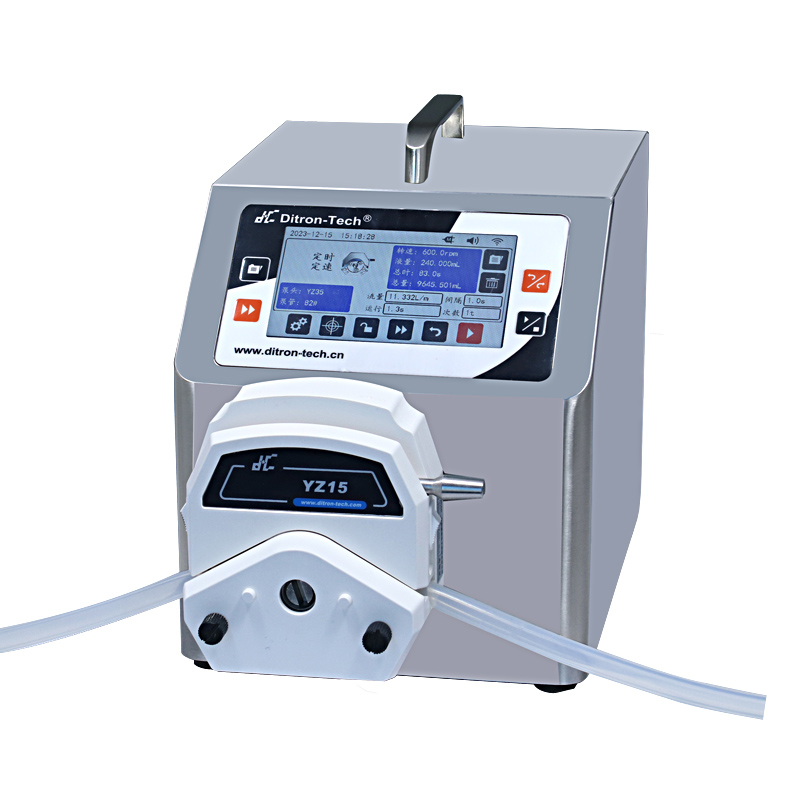

◆ Adaptable to various pump heads to meet different needs, including YZ15(25), DG series, DMD15, 313D, YT15(25), etc.;
◆ Liquid volume accumulation, timing function, multiple schemes can be pre-stored for easy access;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;
Typical Applications
◆ High-precision liquid transfer in laboratories;
◆ Transfer of chemical reagents and pharmaceutical liquids;

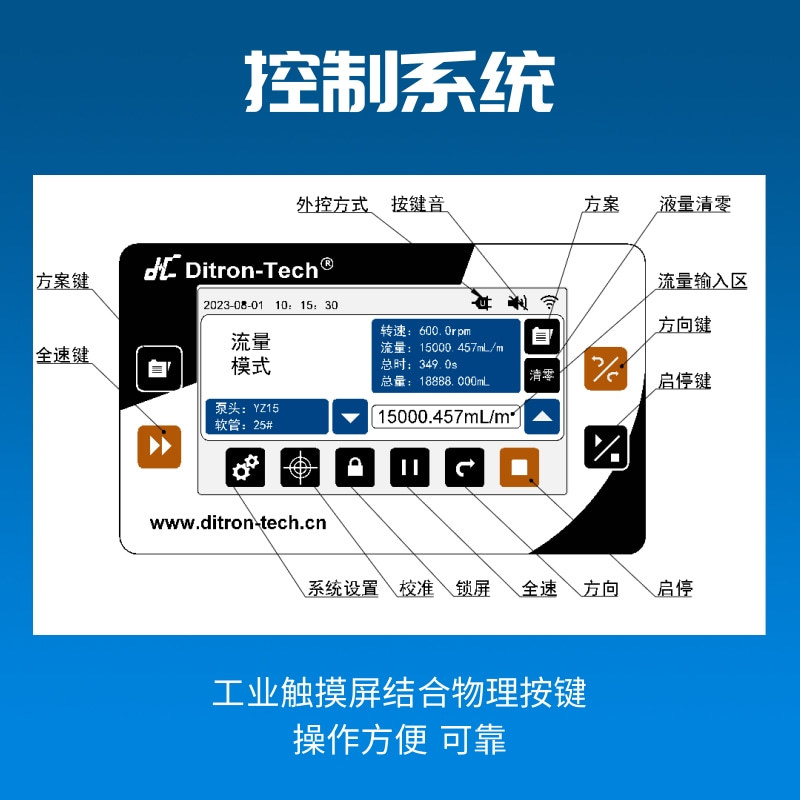

Control Panel
◆ Industrial touch screen combined with membrane keypad operation
Flow mode and timed speed mode
Four physical buttons for scheme, full speed, direction, and start/stop, making operation more convenient
◆ Flow Mode
Set flow value, flow acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input measured flow value to complete flow calibration;
Scheme storage and access function
◆ Timed Speed Mode
Set flow value, running time, interval time, and number of runs, suitable for timed and speed-controlled liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input measured flow value to complete flow calibration;
Scheme storage and access function
Technical Parameters
Driver Model CL100B CL300B CL600B Applicable Pump Head DG-xA、DG-xB、YZ15、YZ15-6、YZ25、313D、DMD15、YT15、YT25 YZ15、YZ15-6、YZ25、313D、DMD15、YT15、YT25 YZ15、YZ25、313D、DMD15、YT15、YT25 Flow Range 0.005-560mL/min 0.013-1700mL/min 0.013-3200mL/min Speed Range 0.2-100rpm 0.2-300rpm 0.2-600rpm Operating Mode Flow Mode, Timed Speed Mode Liquid Volume Accumulation Total liquid volume accumulation and clearing function Time Accumulation Total running time accumulation and clearing function Scheme Storage Save the current running scheme for easy access Flow Calibration Input measured flow, automatic calibration, achieving higher precision liquid transfer Back Suction Speed Setting Set back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Lock the screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Rapid filling and emptying of liquid tubing Direction Control Liquid transfer direction control Scheduled Start Set date and time for scheduled start Timed Start Start at a set time Language Setting Switch between Chinese and English interfaces Factory Reset Factory reset function Speed Control Accuracy ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow mode) Start/Stop Control External signal start/stop control, switch quantity and voltage mode optional Foot Switch Optional foot switch for start/stop control Communication Function Uses Modbus RTU communication protocol Running Time 0.1s-9999.9Hr Interval Time 0.1s-9999.9Hr Operation Method 4.3-inch industrial touch screen combined with membrane keypad Number of Runs 0-99999 times (0 for infinite loop) Working Environment Temperature 0-40℃, relative humidity <80% Applicable Power Supply AC90-260V,50/60Hz Driver Dimensions 220x162x206mm Weight 4.5kg Protection Level IP31 External Signal Control

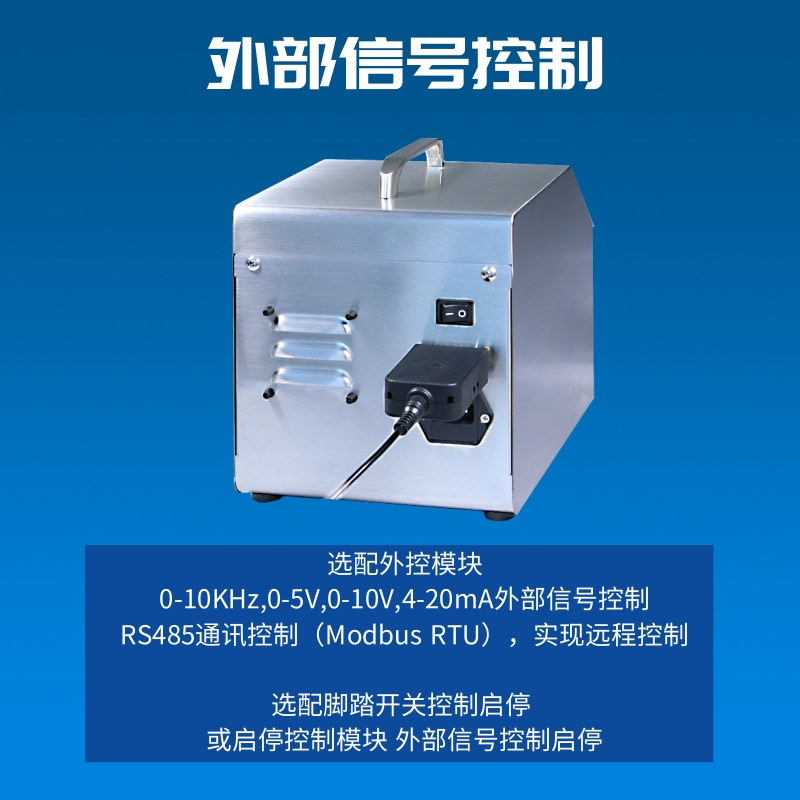

◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch quantity or voltage signal control start/stop, or foot switch control start/stop
Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Number of Channels
Tube
Speed Range (RPM)
Flow Range (mL/min)
CL100B
DG-1(2,4,6,8,12)A
3
1,2,4,6,8,12
0.6×1
0.2-100
0.006-3.27
1×1
0.014-6.45
2×1
0.04-20.60
3×1
0.08-37.5
DG-1(2,4,6,8,12)B
10
1,2,4,6,8,12
0.6×1
0.0052-2.64
1×1
0.012-5.96
2×1
0.034-16.19
3×1
0.056-27.65
YZ15
3
1,2
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
YZ15-6
6
1,2
13#
0.012-6.28
14#
0.04-18.5
19#
0.074-36.7
16#
0.128-63.8
25#
0.24-118.5
17#
0.36-177.3
18#
0.44-224.2
YZ25
3
1,2
15#
0.34-154
24#
0.58-271
35#
0.74-370
313D
3
1
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
DMD15
3
1
2*13#
0.026-13
2*14#
0.098-46
2*19#
0.19-107
2*16#
0.32-169
2*25#
0.68-358
2*17#
1.1-570
YT15
3
1,2
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
YT25
3
1,2
15#
0.35-174
24#
0.58-292
35#
0.79-395
36#
1.1-545
CL300B
YZ15
3
1,2
13#
0.2-300
0.016-23.1
14#
0.054-87
19#
0.104-163.5
16#
0.172-267.1
25#
0.36-555
17#
0.64-969
18#
0.82-1200
YZ15-6
6
1,2
13#
0.012-18.6
14#
0.04-56.1
19#
0.074-112.5
16#
0.128-192
25#
0.24-366
17#
0.36-537
18#
0.44-699
YZ25
3
1,2
15#
0.34-522
24#
0.58-876
35#
0.74-1185
313D
3
1
13#
0.016-23.1
14#
0.054-87
19#
0.104-163.5
16#
0.172-267.1
25#
0.36-555
17#
0.64-969
18#
0.82-1200
DMD15
3
1
2*13#
0.026-39
2*14#
0.098-138
2*19#
0.19-321
2*16#
0.32-507
2*25#
0.68-1074
2*17#
1.1-1719
YT15
3
1,2
13#
0.016-7.45
14#
0.054-29.87
19#
0.104-55.7
16#
0.172-90.4
25#
0.36-180.6
17#
0.64-308.0
18#
0.82-460.0
YT25
3
1,2
15#
0.35-522
24#
0.58-876
35#
0.79-1185
36#
1.1-1635
CL600B
YZ15
3
1,2
13#
0.2-600
0.016-46.1
14#
0.054-178.1
19#
0.104-336.9
16#
0.172-556.2
25#
0.36-1176.6
17#
0.64-2111.6
18#
0.128-2400
YZ25
1,2
15#
0.34-1066
24#
0.58-1856
35#
0.74-2370
313D
3
1
13#
0.016-46.1
14#
0.054-178.1
19#
0.104-336.9
16#
0.172-556.2
25#
0.36-1176.6
17#
0.64-2111.6
18#
0.128-2400
DMD15
3
1
2*13#
0.026-47.07
2*14#
0.098-266.45
2*19#
0.19-564
2*16#
0.32-941
2*25#
0.68-1371
2*17#
1.1-3200
YT15
3
1,2
13#
0.016-46.1
14#
0.054-178.1
19#
0.104-336.9
16#
0.172-556.2
25#
0.36-1176.6
17#
0.64-2111.6
18#
0.128-2400
YT25
3
1,2
15#
0.34-1066
24#
0.58-1856
35#
0.74-2370
36#
1.1-3200
