YT6000-2J gear pump
Category:
Tags:
- Product Description
YT6000-2J gear pump
-
- Commodity name: YT6000-2J gear pump
Flow range: 0-6300mL/min, potentiometer adjustment motor speed, DC geared motor drive
Product Introduction
◆ Flow Range: 0-6300mL/min
◆ Speed Ratio Display Function, displays numbers 0-100, resolution 6rpm
◆ 316L material gear pump head, with corrosion resistance
◆ Magnetic drive, effectively preventing overload damage to the machine
◆ Fully sealed design, no leakage
◆ High flow linearity, low pulsation, high precision, high outlet pressure
◆ Wide voltage power supply, AC 90-260V

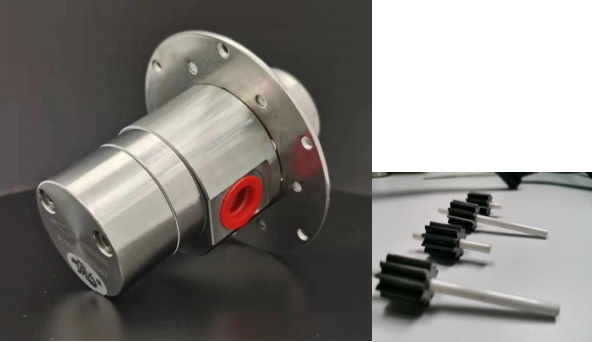

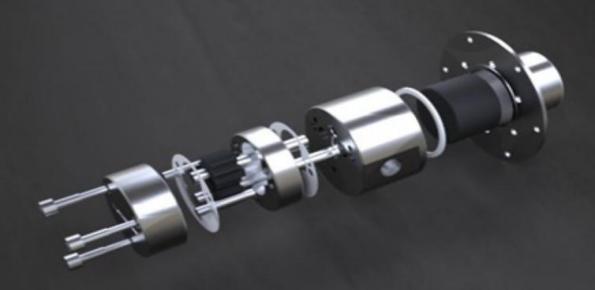

Gear Pump Head
316L stainless steel pump body, PEEK material gears, with excellent corrosion resistance.
Connection Method
Technical Parameters
Product Model YT6000-2J Drive Type Magnetic Drive Flow Range 0-6300mL/min Outlet Pressure 10Bar Display Function Displays speed ratio, displays numbers 0-100, display value 100 indicates full speed, i.e., 600rpm Control Mode PWM DC Motor Control Technology Flow Adjustment Long-life potentiometer adjusts motor speed, thereby adjusting flow rate Motor Brand DC geared motor drive, long life Power Consumption <80W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Operating Environment 0-40℃, humidity <80% non-condensing Driver Weight 5.5kg Protection Level IP31 Selection Guide
Driver
Applicable Pump Head
Speed Range (RPM)
Flow Rate (mL/rev)
Flow Range (mL/min)
Outlet Pressure (kgf)
YT6000-2J
CL15
0-6000
0.25
0-1500
15
CL30
0.5
0-3000
15
CL60
1.41
0-6300
10
◆ The flow rate is the flow rate when the outlet pressure is 0. The flow rate decreases as the outlet pressure increases.

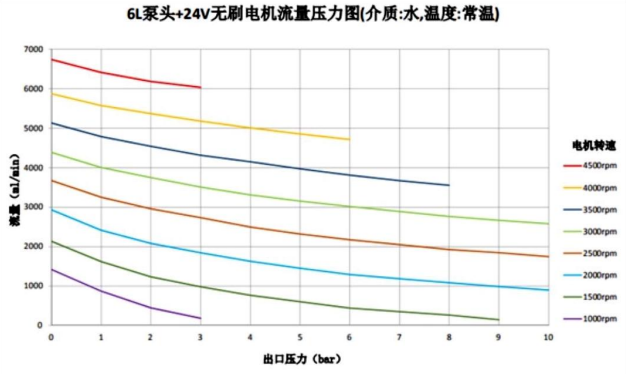

Flow Pressure Curve

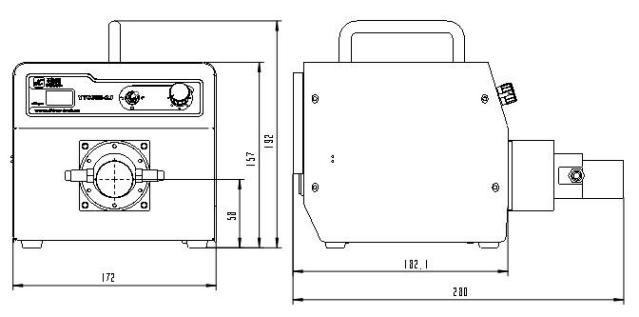

Dimensions
