CF4000W intelligent allocation gear pump
Category:
Tags:
- Product Description
CF4000W intelligent allocation gear pump
-
- Commodity name: CF4000W intelligent allocation gear pump
Flow range: 15-6300mL/min; Suitable for high-precision liquid filling; LCD touch screen control; Brushless DC motor drive
Product Introduction
◆ Flow range: 84-6300mL/min; Suitable for high-precision liquid transfer and filling;
◆ Brushless DC motor drive, high precision, maintenance-free; 316L material gear pump head, PEEK gear material, with corrosion resistance;
◆ Magnetic drive, effectively preventing overload damage to the machine; Fully sealed design, no leakage;
◆ Transfer or filling accuracy up to ±0.5%; Outlet pressure 15Kgf, increased pressure, reduced flow;
◆ Four working modes: flow mode, timed constant speed, constant speed fixed volume, timed fixed volume;
◆ Industrial touch screen and film button synchronous operation, simple and convenient;
◆ Liquid volume accumulation, appointment filling, multiple schemes can be pre-stored for easy access;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;
Control Panel
◆ Industrial touch screen combined with film button operation
Four working modes: flow mode, timed constant speed, constant speed fixed volume, timed fixed volume
Four physical buttons: scheme, full speed, direction, start/stop, for more convenient operation
◆ Flow Mode
Set the flow value, flow acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input the measured flow value to complete the flow calibration;
Scheme storage and retrieval function
◆ Timed Constant Speed Mode
Set the flow value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input the measured flow value to complete the flow calibration;
Scheme storage and retrieval function
◆ Constant Speed Fixed Volume Mode
Input filling liquid volume, flow value, interval time, number of runs, etc., suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and retrieval function
◆ Timed Fixed Volume Mode
Input filling liquid volume, running time, interval time, number of runs, etc., suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and retrieval function

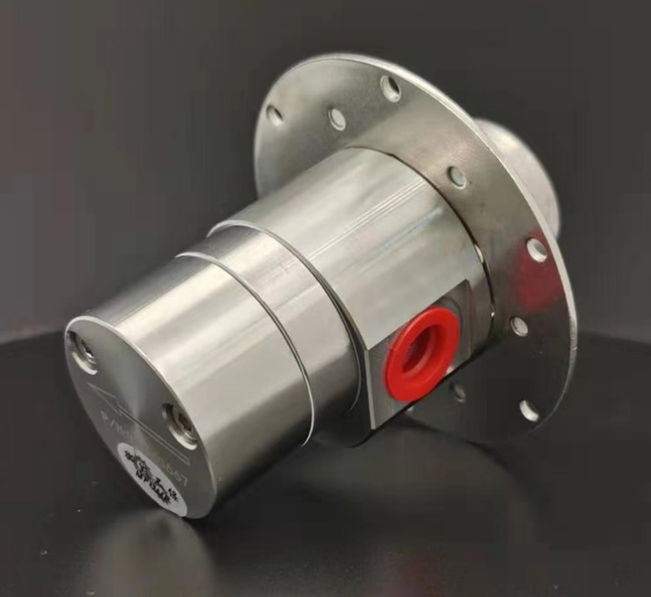

Gear Pump Head

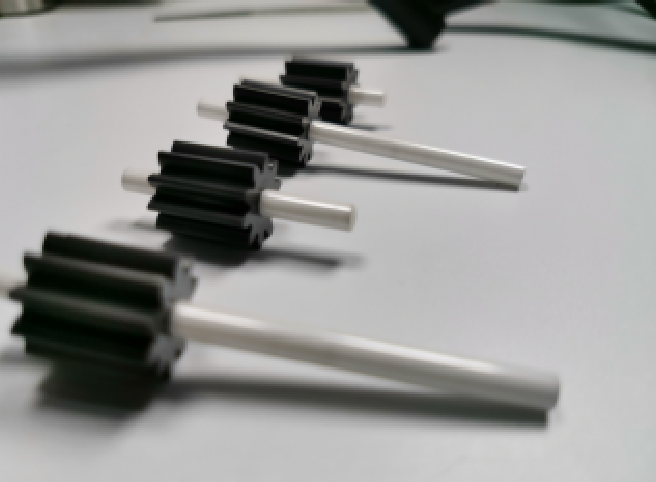

◆ 316L stainless steel pump body, PEEK material gear, with corrosion resistance.

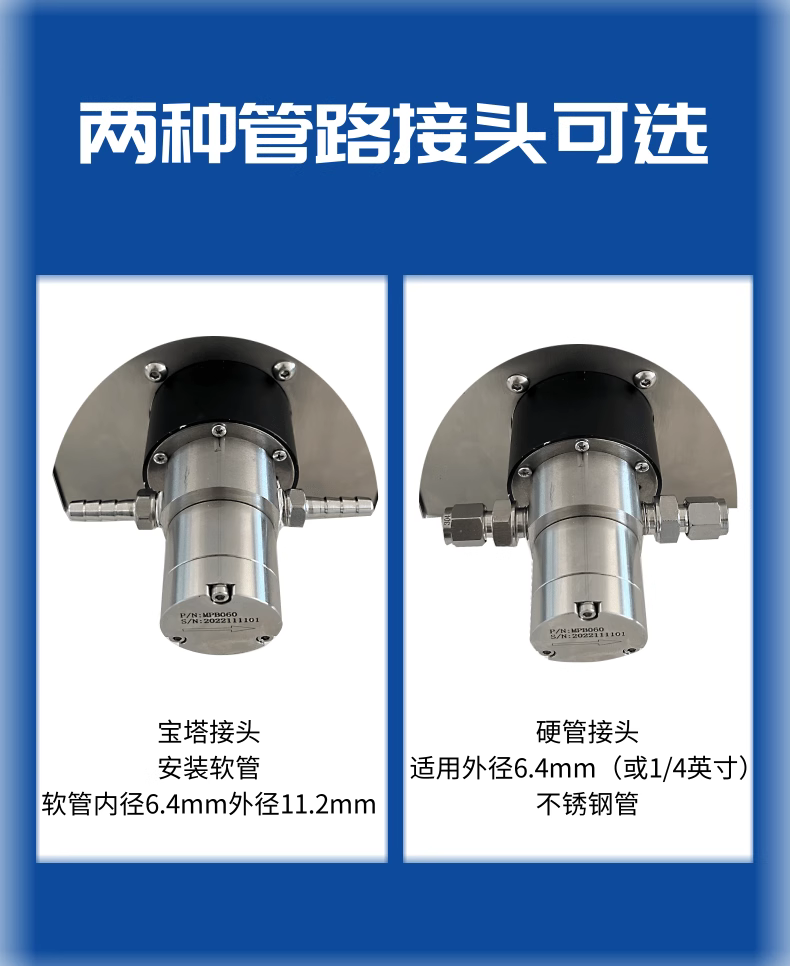

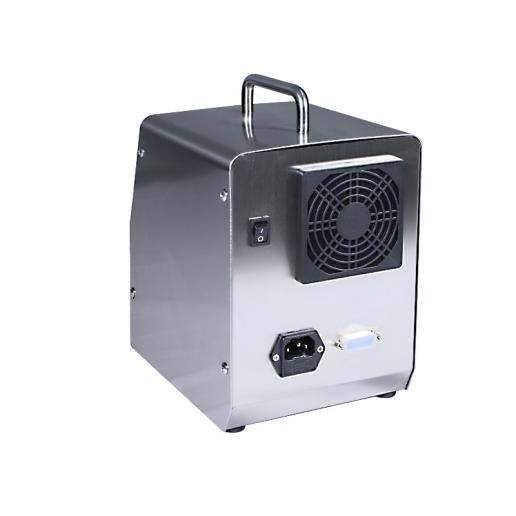

Connection Method
Technical Parameters
Driver Model CF4000W Pump Head Model MP005 MP010 MP015 MP030 MP060 Displacement per Revolution 0.05mL 0.28mL 0.35mL 0.9mL 1.41mL Flow Range mL/min 15-225 84-1260 105-1575 270-4050 423-6345 Speed Range 300-4500rpm Motor Brushless DC Motor Drive Type Magnetic Drive Flow Range 15-6345mL/min (outlet pressure is 0) Outlet Pressure Range 0-15Bar, the higher the outlet pressure, the lower the flow Conveying Liquid Liquid particles ≤10um Working Mode Flow mode, timed constant speed, constant speed fixed volume, timed fixed volume Liquid Volume Accumulation Total liquid volume accumulation and reset function Time Accumulation Total running time accumulation and reset function Scheme Storage Save the current running scheme for easy access Liquid Volume Calibration Input the measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling Screen Lock Function Lock the screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Rapid filling and emptying of liquid hoses Direction Control Liquid transfer direction control Scheduled Start Set the date and time for scheduled start Timed Start Start at the set time Language Setting Chinese and English interface switching Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow mode) Start/Stop Control External signal start/stop control, with optional switch and voltage modes Foot switch Optional foot switch control for start/stop Communication function Uses Modbus RTU communication protocol Filling time 0.1s-9999.9Hr Interval time 0.1s-9999.9Hr Operating mode 4.3-inch industrial touch screen combined with membrane keypad Number of dispensing cycles 0-99999 times (0 for infinite loop) Operating environment Temperature 0-40℃, relative humidity <80% Applicable power supply AC90-260V, 50/60Hz Power consumption <150W Dimensions 310x157x246mm Weight 5kg Protection level IP31 External signal control
◆ In flow rate mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch or voltage signal control for start/stop, or foot switch control for start/stop
Selection guide
Driver
Applicable pump head
Speed range (RPM)
Displacement (mL/rev)
Flow rate range (mL/min)
Outlet pressure (kgf)
CF4000W
MP005 300-4500
0.05 15-225 15 MP010
0.28
84-1260
15
MP015
0.35
105-1575
15
MP030
0.9
270-4050
15
MP060
1.41
423-6345
10
◆ The flow rate is the flow rate when the outlet pressure is 0. The flow rate decreases as the outlet pressure increases.

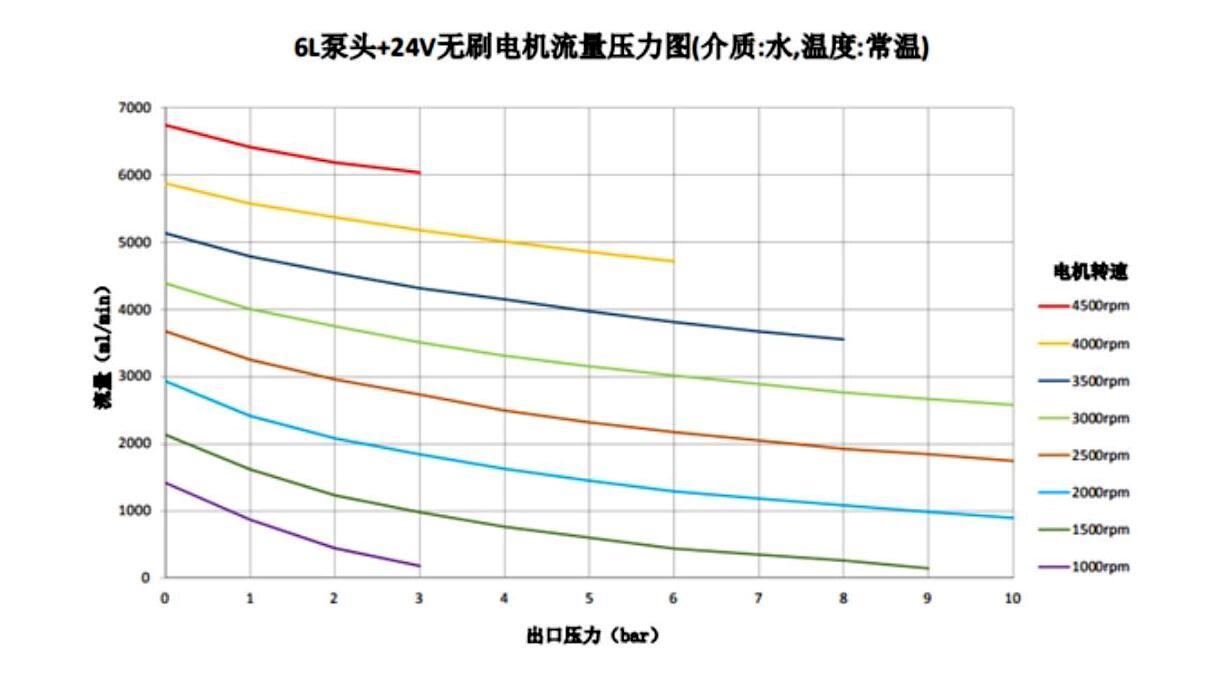

Flow rate pressure curve
◆ Taking CF4000W+MP060 as an example, at room temperature, the medium is water

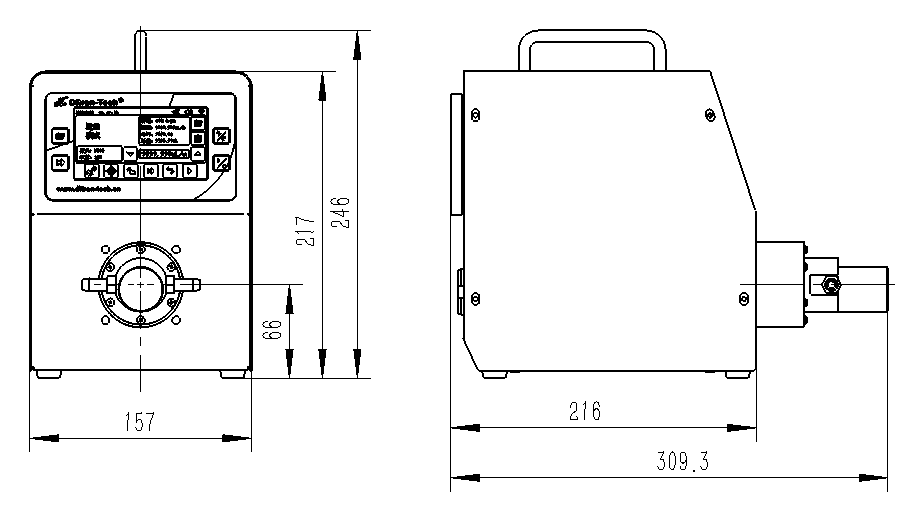

External dimensions
Operation video
Related products
Get a free product quote
Fill in your phone and E-mail information, and we will contact you within one working day to solve your problems as soon as possible.
