Press down the left and right levers to remove the pressure block
DMD15
Flow range: 0.013-3296 mL/min; Roller phase compensation, low pulsation, high precision
Category:
- Product Description
DMD15
-
- Commodity name: DMD15
Flow range: 0.013-3296 mL/min; Roller phase compensation, low pulsation, high precision
Product Introduction
◆ Flow Range: 0.013-3296mL/min
◆ Roller phase compensation, low pulsation, high precision
◆ Adaptive hose fixing method, no manual intervention required
◆ PPS (polyphenylene sulfide) pump body, high strength, corrosion resistant
◆ Multiple pump heads can be cascaded
◆ Suitable for high-precision liquid filling and liquid transfer

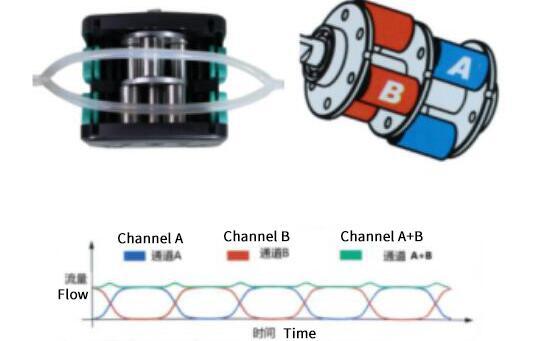

Phase Compensation Principle
◆ The front roller is located between the two rollers of the rear pump head
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by three-way valves,
◆ The liquid in the pipelines of the front and rear pump heads compensates each other
◆ Liquid pulsation is significantly reduced, flow accuracy is above ±0.5%
Selection Guide
Pump Head Model
Housing Material
Roller Material
Number of Pump Head Rollers
Applicable Hose
Applicable Speed (RPM)
Reference Flow Rate (mL/min)
Weight (KG)
DMD15
PPS
304
Stainless Steel
3
2*13#
≤600
0.013-49.6
0.5
2*14#
0.049-266
2*19#
0.095-564
2*16#
0.16-941
2*25#
0.34-1371
2*17#
0.55-3296
Hose Installation
Place the "Y" shaped hose naturally on the rollers
Press up the lever, the pressure block presses into place, the hose clamp reliably clamps the hose, completing the hose installation

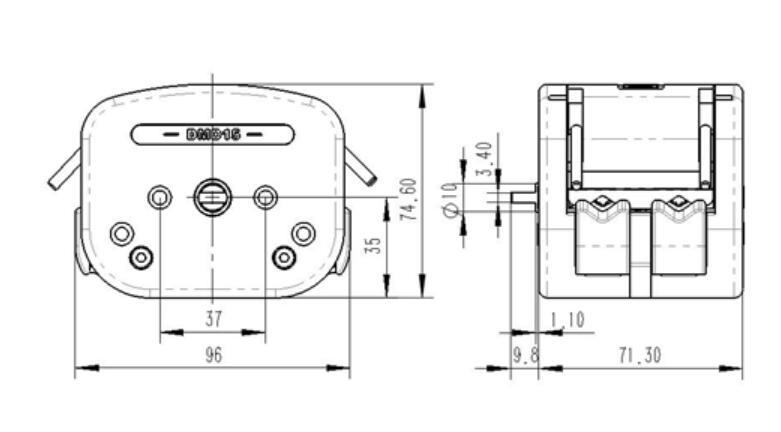

Dimensions
Operation Video Link
