DG series
-
- Commodity name: DG series
Flow range: 0.0002-48mL/min, micro-flow, high-precision, multi-channel synchronous fluid delivery
Product Introduction
◆ Flow range: 0.0002-48mL/min Suitable for micro-flow, high-precision, multi-channel synchronous fluid delivery
◆ The gap between the pressure tubes can be adjusted by ratchet to adapt to different wall thicknesses of the tubing
◆ Multiple pump heads can be cascaded
◆ Independent card design, convenient and quick tubing replacement
Selection Guide
Pump Head Model
Roller Material
Number of Pump Head Rollers
Number of Channels
Applicable Tubing (Inner Diameter * Wall Thickness)
Applicable Speed (RPM)
Reference Flow Rate (mL/min)
Weight (KG)
DG-1A
304
Stainless Steel
6
1
0.6×1
1×1
2×1
3×1
0.38×0.86
0.76×0.86
1.02×0.86
1.6×0.8
2.06×0.86
2.79×0.86
3.17×0.86
≤100
48
0.2-0.9
DG-2A
2
DG-4A
4
DG-6A
6
DG-8A
8
DG-12A
12
DG-1B
304
Stainless Steel
10
1
≤100
32
0.2-0.9
DG-2B
2
DG-4B
4
DG-6B
6
DG-8B
8
DG-12B
12
◆ DG-1A, DG-2A...DG-12A series pump heads use a 6-roller structure with slightly higher flow rates
◆ DG-1B, DG-2B...DG-12B series pump heads use a 10-roller structure with slightly lower flow rates, higher precision, and lower pulsation
◆ 0.6×1, 1×1, 2×1, 3×1 are domestic peristaltic pump tubes; others are imported peristaltic pump tubes

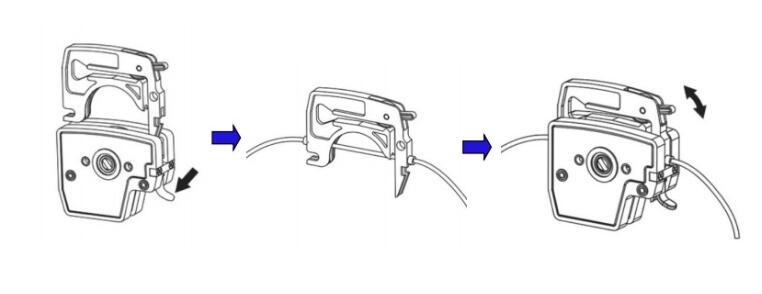

Tubing Installation
◆ Press the button (DG-1A, DG-1B include buttons) or the angled corner of the card to remove the card
◆ Place the tubing in the card groove, and the two ends of the tubing are fixed to the card by the STOP. The distance between the STOPS should be 72mm to ensure consistent flow rate for each channel.
◆ Insert the card with the installed tubing into the pump body in sequence to complete the tubing installation

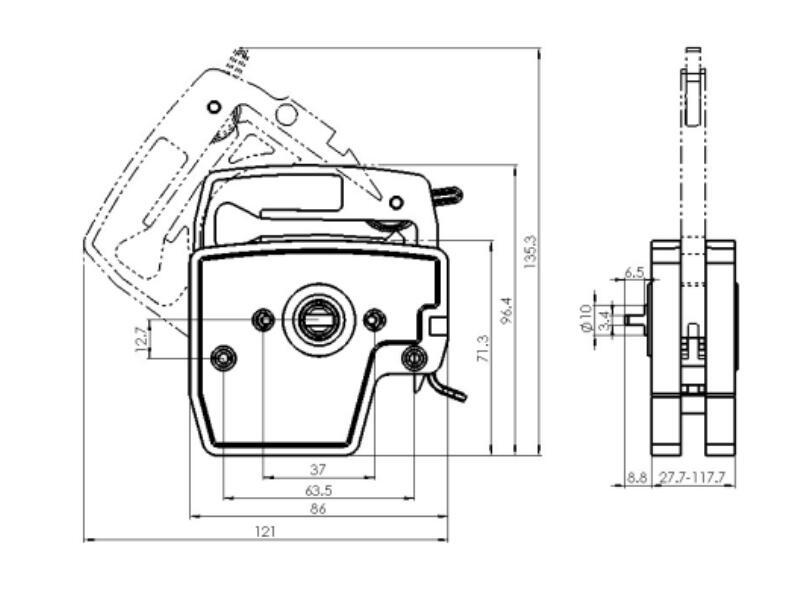

Dimensions
