Turn the lever counterclockwise 180° and lift the pressure block.
YZ15, YZ25
Flow range: 0.007-2400mL/min, easy-to-install peristaltic pump head, two materials optional: PSF (polysulfone), PPS (polyphenylene sulfide)
Category:
- Product Description
YZ15, YZ25
-
- Commodity name: YZ15, YZ25
Flow range: 0.007-2400mL/min, easy-to-install peristaltic pump head, two materials optional: PSF (polysulfone), PPS (polyphenylene sulfide)
YZ Series Pump Head
YZ Series (PSF Polysulfone) YZ Series (PPS Polyphenylene Sulfide) Product Introduction
◆ Flow Rate Range: 0.007-2400mL/min
◆ The tube clamping section uses a toothless design, resulting in a more reasonable structure and a wider flow rate range.
◆ Two materials are available: PSF (Polysulfone) and PPS (Polyphenylene Sulfide)
◆ Multiple pump heads can be cascaded.
◆ Classic design, widely used.
Selection Guide
Pump Head Model
Housing Material
Roller Material
Number of Pump Head Rollers
Applicable Tubing
Applicable Speed (RPM)
Reference Flow Rate (mL/min)
Weight (KG)
YZ15
PSF
304
Stainless Steel
3
13#,14#,19#,16#
25#,17#,18#
≤600
2400
0.4
PPS
PSF
6
≤300
726
PPS
YZ25
PSF
304
Stainless Steel
3
15#,24#
≤600
1800
PPS

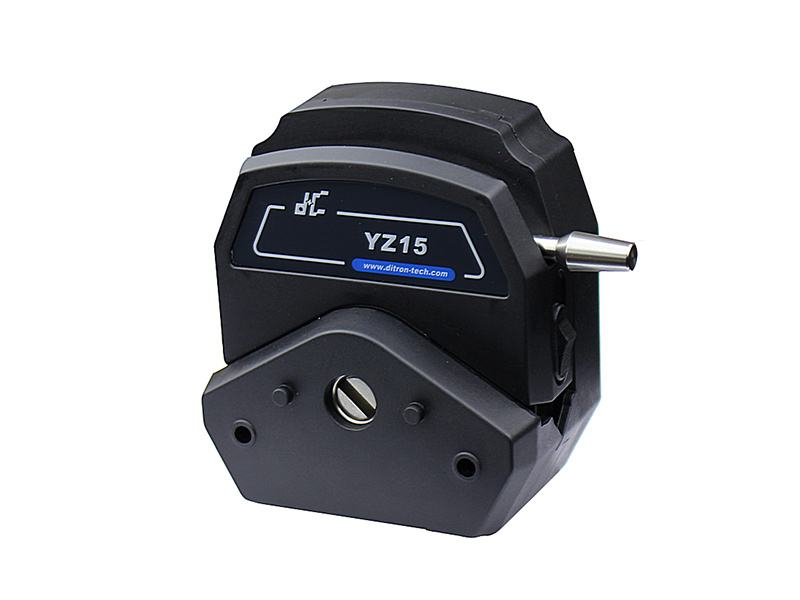

◆ YZ15-PSF and YZ25-PSF use imported Solvay PSF (polysulfone) housings, which are resistant to acids and alkalis and have excellent corrosion resistance.

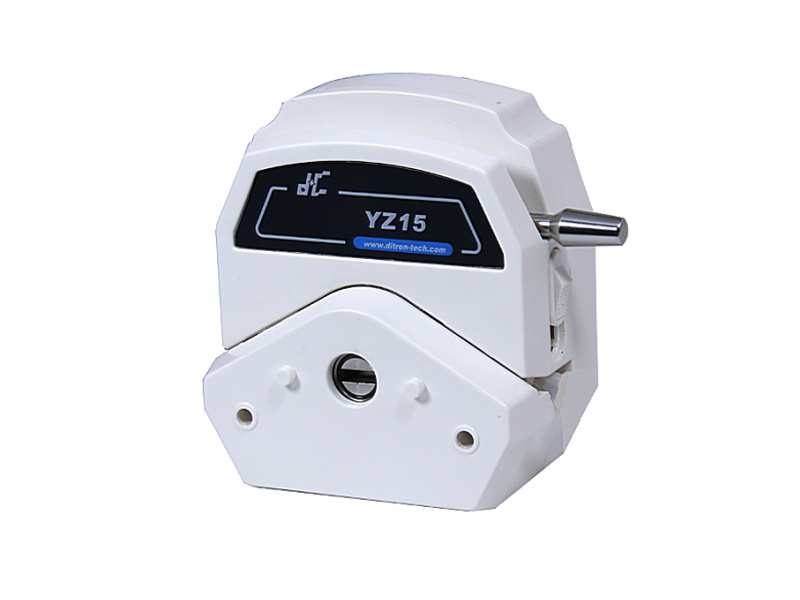

◆ YZ15-PPS and YZ25-PPS use imported Ticona PPS (polyphenylene sulfide) housings, which can withstand most chemical reagents and have corrosion resistance.
◆ The YZ25 pump head can withstand higher pressure or negative pressure and can transport higher viscosity liquids.
Tubing Installation
Insert the tubing naturally between the rollers and the upper pressure block.

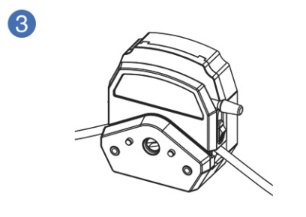

Turn the lever clockwise 180° to lower the pressure block into place, completing the tubing installation.

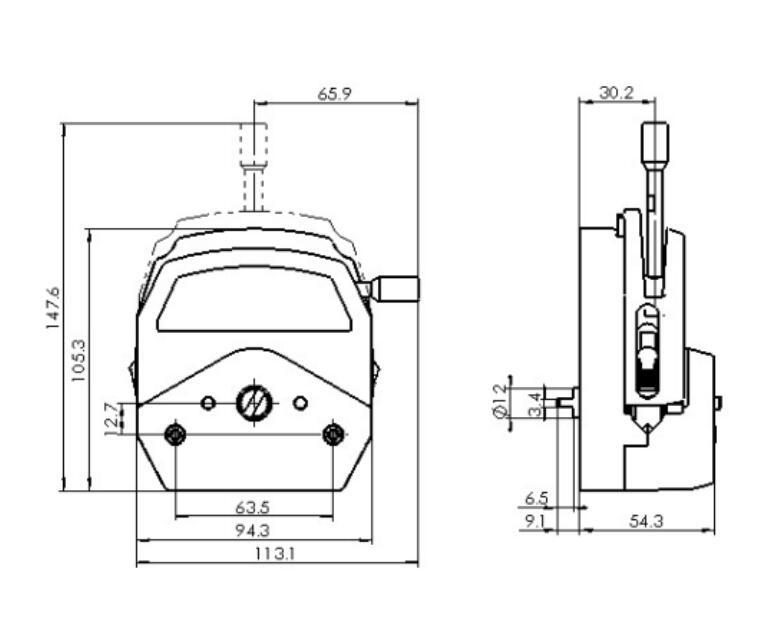

Dimensions
