Turn the lever counterclockwise 180° and lift the pressure block.
KZ25
Flow range: 0.28-6061 mL/min. The housing material uses imported TICONA PPS (polyphenylene sulfide), which is highly corrosion-resistant.
Category:
- Product Description
KZ25
-
- Commodity name: KZ25
Flow range: 0.28-6061 mL/min. The housing material uses imported TICONA PPS (polyphenylene sulfide), which is highly corrosion-resistant.
Product Introduction
◆ Flow Range: 0.28-6061mL/min
◆ The housing is made of imported TICONA PPS (polyphenylene sulfide), which is highly corrosion-resistant.
◆ Adaptive hose clamp structure, no manual intervention required, easier operation
◆ Multiple pump heads can be cascaded.
Selection Guide
Pump Head Model
Roller Material
Number of Pump Head Rollers
Applicable Tubing
Applicable Speed (RPM)
Flow Range (mL/min)
Weight (KG)
KZ25
304 Stainless Steel
3
15#
≤600
≤1800
0.8
24#
≤3200
35#
≤4500
36#
<6061
◆ Using a TICONA high-performance PPS (polyphenylene sulfide) housing, it can withstand most chemical reagents and is corrosion-resistant.
Tubing Installation
Place the tubing naturally in the V-groove of the rollers and the end clamps.
Hold the pressure block, flip the lever, and tighten the pressure block to complete the tubing installation.

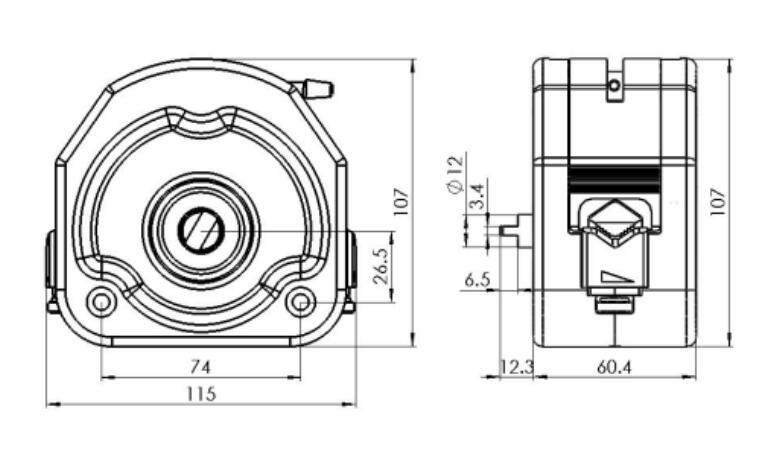

Dimensions
