CF600S+KZ25
Category:
Tags:
- Product Description
CF600S+KZ25
-
- Commodity name: CF600S+KZ25
Suitable for liquid transfer ≤6000 mL/min and liquid filling of 10-500 mL; four working modes: flow rate mode, timed constant speed, constant speed and constant volume, and timed constant volume; synchronous operation of industrial touch screen and membrane keypad
Product Introduction
◆ Four operating modes: flow rate mode, timed constant speed, constant speed constant volume, and timed constant volume;
◆ Simultaneous operation of industrial touch screen and membrane keypad, simple, convenient and fast;
◆ Suitable for high-precision liquid transfer of ≤6000mL/min, and liquid filling of 10-500mL;
◆ Servo motor drive, effectively ensuring the precision of liquid transfer and filling;
◆ Adaptable to various pump heads to meet different needs, including KZ25, DMD25, YZ15, YZ25 pump heads;
◆ Liquid volume accumulation, appointment filling, and multiple preset schemes for easy access;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;
Typical Applications
◆ High-precision industrial liquid transfer;
◆ Chemical reagent and liquid dispensing, such as diagnostic reagents and oral liquids;
◆ High-precision liquid filling
Matching liquid filling production line;
Control Panel
◆ Industrial touch screen combined with membrane keypad operation
Flow rate mode, timed constant speed, constant speed constant volume, timed constant volume four working modes
Scheme, full speed, direction, start/stop four physical buttons, making operation more convenient
◆ Flow Rate Mode
Set the flow rate value, flow rate acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;
Scheme storage and access function
◆ Timed Constant Speed Mode
Set the flow rate value, running time, interval time, and number of runs, suitable for timed constant speed liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;
Scheme storage and access function
◆ Constant Speed Constant Volume Mode
Input parameters such as filling liquid volume, flow rate, interval time, and number of runs, suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and access function
◆ Timed Constant Volume Mode
Input parameters such as filling liquid volume, running time, interval time, and number of runs, suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and access function
Technical Parameters
Driver Model CF600S CF350S Applicable Pump Head KZ25, YZ15, YZ25 DMD25 Flow Rate Range 0.59-6000mL/min 0.09-4160mL/min Speed Range 0.2-600rpm 0.2-350rpm Pump Head Characteristics Suitable for high-flow liquid transfer and filling Special low-pulsation pump head, suitable for high-precision liquid filling Operating Modes Flow rate mode, timed constant speed, constant speed constant volume, timed constant volume Liquid Volume Accumulation Total liquid volume accumulation and zeroing function Time Accumulation Total running time accumulation and zeroing function Scheme Storage Save the current running scheme for easy access Liquid Volume Calibration Input the measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Lock Screen Function Lock screen to prevent accidental touches or arbitrary parameter changes Full Speed Function Fast liquid filling and emptying of the hose Direction Control Liquid transfer direction control Appointment Start Set date and time to start appointment Timed Start Start at the set time Language Setting Switch between Chinese and English interfaces Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode) Start/Stop Control External signal start/stop control, switch quantity and voltage mode optional Foot Switch Optional foot switch to control start/stop Communication Function Using Modbus RTU communication protocol Filling time 0.1s-9999.9Hr Interval time 0.1s-9999.9Hr Operating mode 4.3-inch industrial touch screen combined with membrane keypad Allocation times 0-99999 times (0 for infinite loop) Working environment Temperature 0-40℃, relative humidity <80% Applicable power supply AC90-260V, 50/60Hz Driver size 240x162x206mm Weight 5.5kg Protection level IP31 External signal control
◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch quantity or voltage signal control start/stop, or foot switch control start/stop
Selection guide
Driver
Applicable Pump Head
Number of pump head rollers
Number of channels
Hose
Speed range (RPM)
Flow rate range (mL/min)
CF600S
KZ25
3
1,2
15#
0.2-600
0.016-46.1
24#
0.054-178.1
35#
0.104-336.9
36#
0.172-556.2
DMD25
6
1
1.6×2.4
0.2-350
0.086-150.4
3.2×2.4
0.46-805
2*15#
0.86-1505
2*24#
1.37-2397
2*35#
1.68-2950
2*36#
2.38-4165

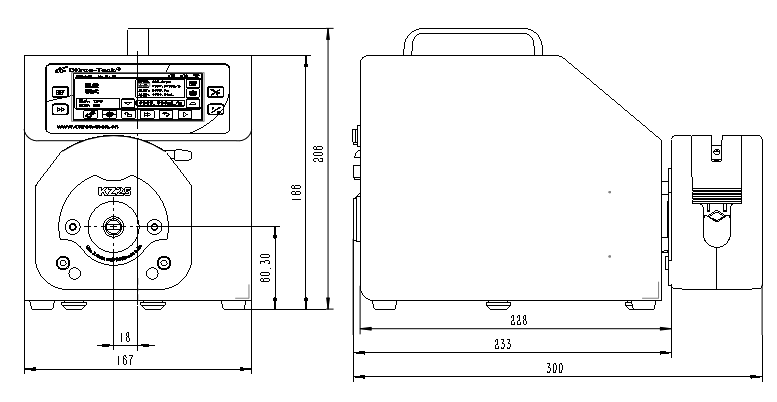

Dimensions
