G-1J(1Z)+YZ15 series
Category:
- Product Description
G-1J(1Z)+YZ15 series
-
- Commodity name: G-1J(1Z)+YZ15 series
Flow range: ≤460mL/min, driven by AC synchronous motor or DC geared motor, fixed speed, multiple speed motors optional
Product Introduction
◆ AC Synchronous Motor Drive
Fixed speed, multiple speed motors available
Flow range: ≤460mL/min
Users select the appropriate motor speed according to the required flow rate
◆ DC Gear Motor Drive
Fixed speed, multiple speed motors available
AC power supply, AC220V
Flow range: ≤2400mL/min
DC power supply, DC12V, DC24V optionalTechnical Parameters
Product Model G-1J+YZ15 series G-1Z+YZ15 series Applicable Pump Head YZ15A(PSF material), YZ25A(PSF material), YZ15B(PPS material), YZ25B(PPS material), YZ15C(6 rollers) Multiple speeds available 5rpm, 10rpm, 15rpm, 20 rpm, 25 rpm, 30 rpm, 40 rpm, 50 rpm, 60 rpm, 80 rpm, 110rpm ≤600rpm，fixed speed, multiple speed motors optional，20rpm，25rpm，30rpm，50rpm，60rpm，83rpm，166rpm，200rpm，240rpm，500rpm，600rpm Adaptable Tubing 13#, 14#, 19#, 16#, 25#, 17#, 18#, 15#, 24# Applicable Power Supply AC220V DC12V, DC24V optional Operating Environment 0-40℃, Relative humidity: <80% Weight 1500g 1700g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
G-1J+YZ15A
G-1J+YZ15B
3
1
13#
≤110
≤7.9
14#
≤28.9
19#
≤54
16#
≤87.9
25#
≤183
17#
≤325
18#
≤460
G600-1Z+YZ15A
G600-1Z+YZ15B
13# ≤600 ≤46.10 14# ≤178.1 19# ≤336.9 16# ≤556.22 25# ≤1176 17# ≤2111 18# ≤2416 G600-1Z+YZ15A
15# ≤1066 24# ≤1856 Dimensions

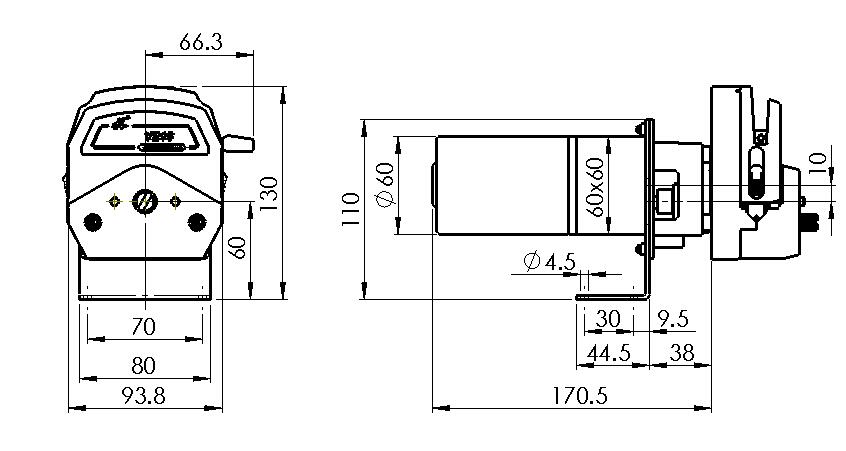

G-1J+YZ15 series

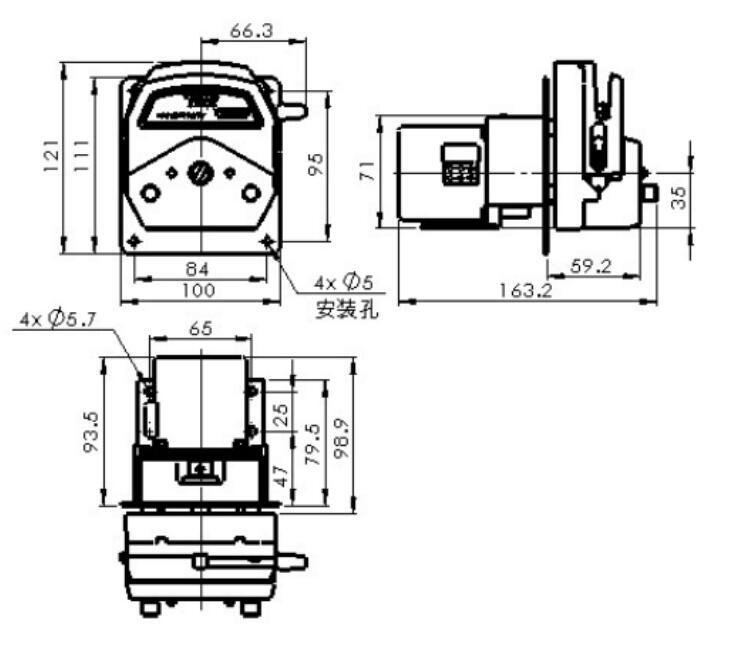

G-1Z+YZ15 series
