BT600-1F
-
- Commodity name: BT600-1F
Flow range: 0.07-2400mL/min Optional pump heads: YZ series, DMD15 Flow and dispensing modes are selectable
Product Introduction
◆ Flow Range: 0.07-2400mL/min
◆ Various pump heads are optional: YZ series, DMD15
◆ Two working modes: flow mode and dispensing mode are optional◆ With flow correction and dispensing volume correction functions
◆ Dispensing accuracy can reach ±0.4%
◆ Filling bracket is an optional accessory
Typical Applications
◆ Laboratory, Filling
◆ Reagent dispensing, medium dispensing
Control Panel
External Signal Control
Technical Parameters
Product Model BT600-1F CPU ARM Cortex-0 core, STM32 chip Motor Drive Chip THB7128 Sanyo drive chip Speed Adjustment Range 1-600RPM Speed Resolution 1RPM Dispensing Function Precise quantitative dispensing of liquid Dispensing Volume Range 0.1mL-999L Number of Dispensing 1-9999 times ("0" for infinite cycle) Dispensing Time Interval 0.1S-24Hr Display Function 128×32 graphic dot matrix LCD display, flow and speed displayed simultaneously Direction Control Reversible rotation function Operating Method Rotary encoder switch combined with membrane key operation, more convenient for users Full Speed Function Fast filling and emptying of the pipeline can be achieved through the full speed button Power-off Memory Function After power-on, continue running according to the previous state before power-off Back Suction Function Running in dispensing mode, the pump reverses a certain angle after shutdown, effectively preventing liquid dripping Flow Calibration Function Automatic flow calibration function, flow accuracy can reach ±0.5% Dispensing Volume Calibration Function Input the actual dispensing volume, automatically perform dispensing volume calibration, dispensing accuracy can reach ±0.5% External Control Function Optional different models of external control modules, can be used for start/stop control, direction control, flow control,
0-5V, 0-10V, 4-20mA, 0-10KHz 4 optional external control modules
Communication Function Optional communication module, RS485 communication control can be performed (using general Modbus protocol) Foot Switch Function Optional foot switch to control start and stop Dispensing Bracket Optional filling bracket for installing filling nozzle Dispensing Nozzle Optional filling nozzles of various specifications, nozzle inner diameter 2.2mm, 2.5mm, 3mm, 4mm, 6mm Power Consumption 70W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Working Environment 0-40℃, humidity <80% non-condensing Driver Weight 4.8KG Protection Level IP31 Selection Guide
Filling Volume
Filling Time (Sec)
Filling Accuracy
Recommended Driver
Recommended Pump Head
Recommended Tubing
10 mL
≥0.80
±1.0%
BT300-1F
YZ15
25#
20 mL
≥1.57
±0.8%
25#
30 mL
≥2.39
±0.5%
25#
50 mL
≥2.70
±0.5%
BT600-1F
YZ15
25#
100mL
≥3.25
±0.4%
17#
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Tubing
Speed Range (RPM)
Flow Range (mL/min)
BT600-1F
YZ15
3
1,2
13#
1-600
0.08-46.10
14#
0.27-178.1
19#
0.52-336.9
16#
0.86-556.2
25#
1.8-1176.6
17#
3.2-2111.6
18#
4.1-2416
YZ25
3
1,2
15#
1-600
1.7-1066.6
24#
2.9-1856
◆ The flow values in the table are measured data of silicone rubber tubes, and various imported soft tubes are optional
◆ Using imported soft tubes can improve the service life and flow accuracy of the soft tubes

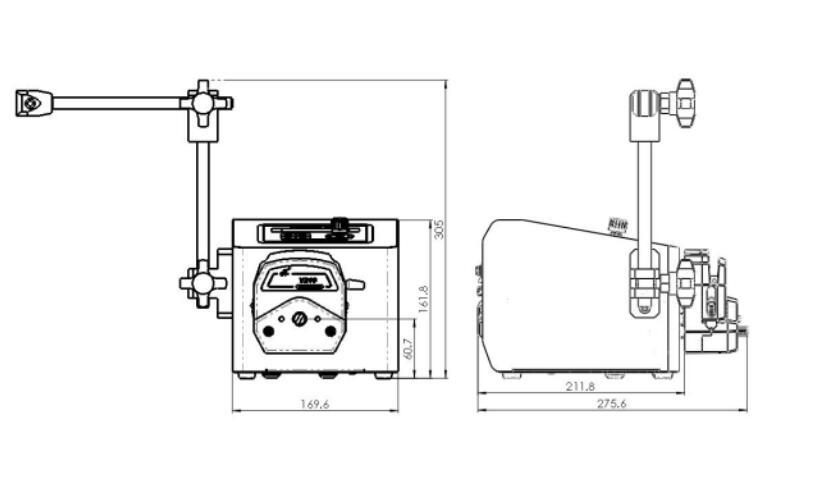

Dimensions
