BZ series
-
- Commodity name: BZ series
Flow range: 0.027-1630mL/min, extremely stable operation, American DuPont PC material, transparent shell, convenient for observing the pump operation
Product Introduction
◆ Flow Range: 0.027-1630mL/min
◆ Extremely stable operation, higher flow accuracy than other pump heads
◆ American DuPont PC material, transparent shell, convenient for observing the operation of the pump
◆ Multiple pump heads can be cascaded
Selection Guide
Pump Head Model
Shell Material
Roller Material
Number of Pump Head Rollers
Applicable Tubing
Applicable Speed (RPM)
Flow Range (mL/min)
Weight (KG)
BZ15-14
PC
304 Stainless Steel
3
14#
≤600
≤150
0.3
BZ15-16
16#
≤489.9
BZ25A
24#
≤1630
◆ The BZ25A pump head can withstand higher pressure or negative pressure, and can transfer fluids with higher viscosity

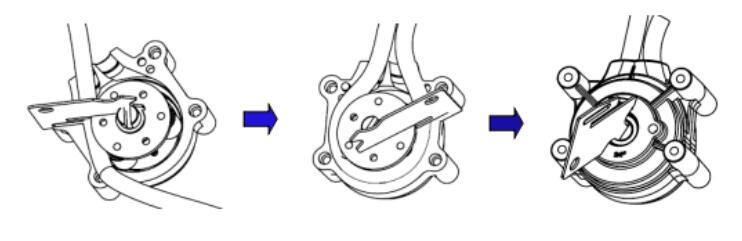

Tubing Installation
◆ Open the pump head casing, insert the tubing, rotate the special key (or by hand), and insert the tubing between the roller and the casing
◆ Close the casing, rotate the pump head spindle, adjust the tubing position, and complete the tubing installation

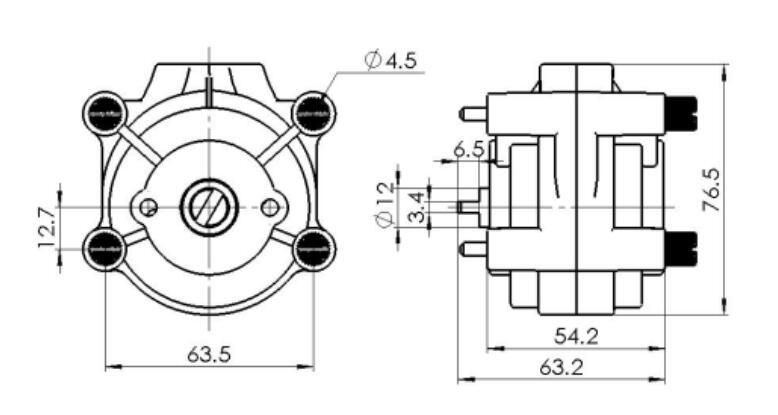

Dimensions
