LSP02-3BH Independent Control High-Pressure Injection Pump

Flow rate range: 0.764nl/min-197.669ml/min, high-pressure dual-channel independent control infusion/extraction type micro-syringe pump, suitable for high-precision transmission of high-viscosity, high-pressure liquids.

Category:

Laboratory injection pump

Tags:

Ditron-tech

sales3@ditrontech.com

Get a quote

Product Manual

LSP02-3BH Independent Control High-Pressure Injection Pump

Product Description

Commodity name: LSP02-3BH Independent Control High-Pressure Injection Pump

Product Introduction

◆ The LSP02-3BH is a high-pressure, dual-channel, independently controlled infusion/withdrawal microliter syringe pump, suitable for high-precision transfer of high-viscosity, high-pressure liquids.

◆ Maximum thrust 600N

◆ Flow rate range: 0.764nl/min-197.669ml/min.

◆ Capable of accommodating different specifications of stainless steel syringes, injectors, or other syringes

◆ User-friendly human-machine interface: Large screen LCD display, digital rotary knob and membrane keypad for easy and quick operation.

◆ 5 working modes: Infusion mode, Withdrawal mode, Withdrawal-infusion mode, Infusion-withdrawal mode, Continuous mode.

◆ Power-off memory function: 1. EEPROM saves setting parameters, no need to reset after power-on.

◆ Using 485 communication bus, it can be connected to the host computer and controlled through the background software.

◆ External control interface: With input/output control functions.

◆ Liquid volume calibration function: More accurate flow rate can be obtained through the calibration program.

Typical Applications

◆ Biological laboratory

◆ High-pressure, high-viscosity liquid transfer

Syringe Installation Method

Technical Parameters

Product Model	LSP02-3HB
Microliter Syringe Pump Working Mode	Infusion, Withdrawal, Withdrawal-then-infusion, Infusion-then-withdrawal, Continuous
Control Method	2-channel independent control, individual calibration; can operate independently or in combination
Flow Rate Range	0.764nl-197.669ml/min
Number of Syringes That Can Be Installed	2
Applicable Syringe Specifications	5uL-200mL
Stroke Distance	140mm
Stroke Resolution	0.156μm
Linear Velocity Range	7.94 um/min-79.4mm/min (Flow rate = Linear velocity × Syringe inner cross-sectional area)
Linear Velocity Adjustment Resolution	5μm/min
Stroke Control Accuracy	Error ≤ ±0.5% (when stroke ≥ 30% of stroke distance)
Rated Linear Thrust	≥600N
Syringe Selection	Built-in syringes from major manufacturers and major models for selection
Syringe Customization	Syringe inner diameter can be directly input
Flow Rate Calibration	Obtain more accurate liquid volume through the calibration program
Running Parameter Setting	Dispensing volume, injection time, etc.
Display Parameter Selection	Volume, flow rate or linear velocity
Power-off Memory	After power-on, you can choose whether to continue working according to the status before power-off
Status Signal Output	2-channel OC gate signal output, used to indicate start/stop and direction status
Control Signal Input	2-channel start/stop control input terminals, 1-channel falling edge trigger signal controls start/stop; 1-channel TTL level signal controls start/stop
Communication Interface	RS485

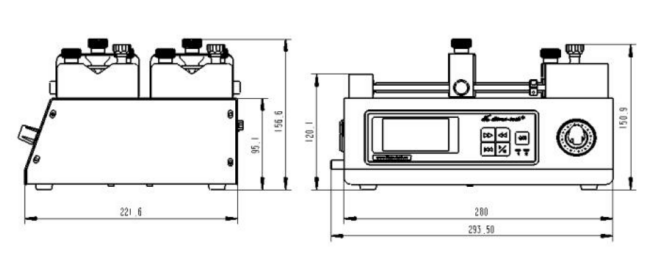

Dimensions	280×210×140(mm)
Weight	7.5kg
Power Supply	AC 90V-260V/50W
Relative Humidity of Working Environment	<80%
Working Environment Temperature	0℃-40℃

Selection Guide

Syringe Pump Model	Syringe Type	Applicable Syringe (or Injector) Specifications	Applicable Syringe Inner Diameter (mm)	Reference Flow Rate Range (nl/min-ml/min)	Outlet Pressure (MPa)
LSP02-3BH	Injector	5ul	0.35	0.764-7.64	One
		10μl	0.50	1.559-15.59	One
		25μl	0.80	3.991-39.91	One
		50μl	1.10	7.546-75.46	One
		100μl	1.60	15.96-159.6	One
		250μl	2.30	32.99-329.9	One
		500μl	3.25	65.87-658.7	One
		1000ul	4.61	132.5-1325	One
	Plastic syringe	1ml	4.72	0.139-1.390	One
		2ml	9.00	0.505-5.050	One
		5ml	13.10	1.070-10.70	One
		10ml	16.60	1.718-17.18	One
		20ml	19.00	2.251-22.51	One
		30ml	23.00	3.298-32.98	One
		60ml	29.14	5.295-52.95	One
	Stainless steel syringe	6ml	9.4	0.3470-9.0217	9.55
		20ml	19.05	1.4251-37.053	2.11
		50ml	28.6	3.2121-83.5152	0.75
		100ml	34.9	4.7831-124.361	0.49
		200ml	44	7.6026-197.669	0.35
