Press down the left and right levers to remove the pressure block
BT100(300,600)-1L+DMD15
Flow range: 0.0013-3296 mL/min, two working modes of flow rate and timing, flow rate and speed displayed on the same screen, flow rate calibration
Category:
Tags:
- Product Description
BT100(300,600)-1L+DMD15
-
- Commodity name: BT100(300,600)-1L+DMD15
Flow range: 0.0013-3296 mL/min, two working modes of flow rate and timing, flow rate and speed displayed on the same screen, flow rate calibration
Product Introduction
◆ Flow Range: 0.0013-3296mL/min
◆ DMD15 Low Pulsation Peristaltic Pump Head
◆ Flow rate and speed are displayed on the same screen, flow rate correction
◆ Membrane keypad with imported encoder control, more convenient and reliable
◆ Flow accuracy ±0.5%
Typical Applications
◆ Laboratory applications, pharmaceutical machinery matching

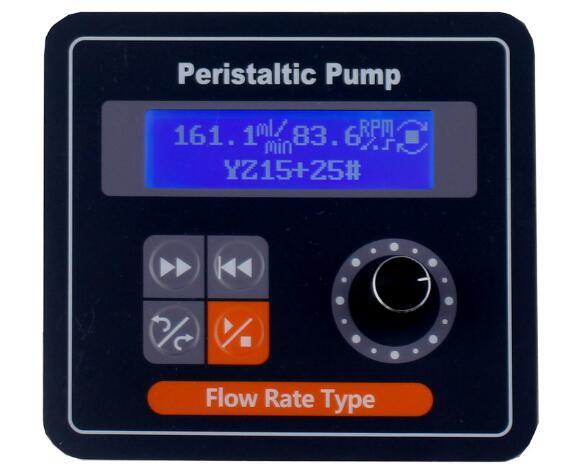

Control Panel

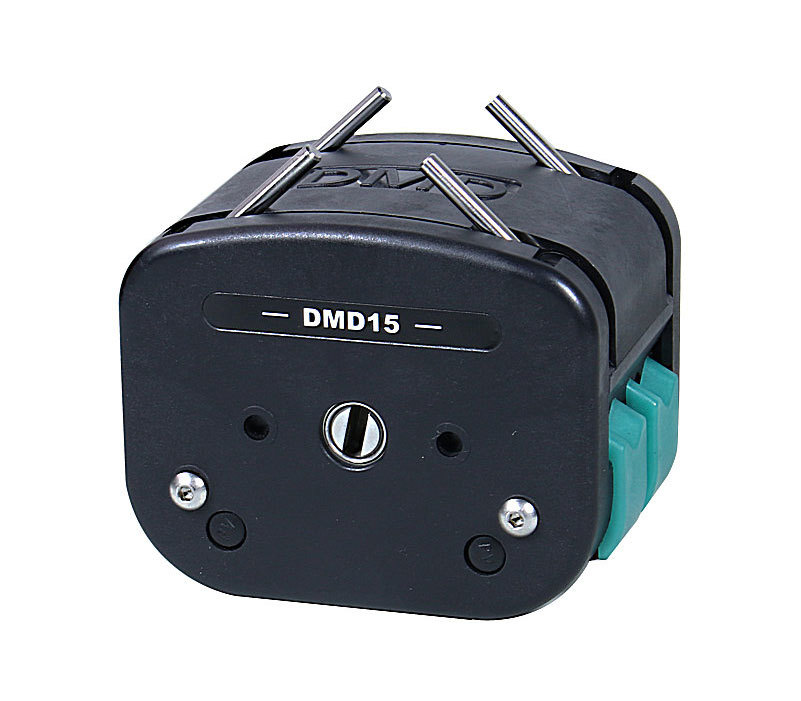

Peristaltic Pump Head

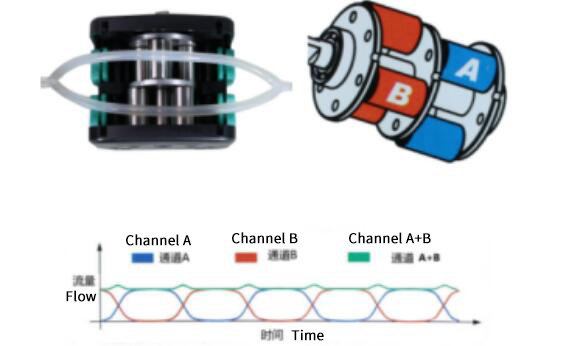

Phase Compensation Principle
◆ Reduce pulsation and improve flow accuracy by phase compensation of the roller:
◆ The front roller is located between the two rollers of the rear pump head
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by three-way valves respectively,
◆ The liquid in the front and rear pump head pipelines compensates each other
◆ Liquid pulsation is significantly reduced, and flow accuracy is above ±0.5%
Tubing Installation
Place the "Y" shaped tubing naturally on the rollers
Press up the lever, the pressure block is pressed into place, the tube clamp reliably clamps the tubing, completing the tubing installation

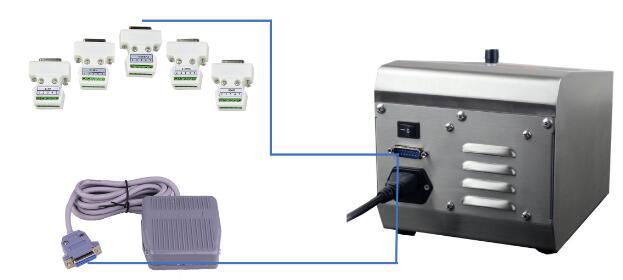

External Signal Control
◆ Optional 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485 communication module, external signal control
◆ Optional foot switch to control start and stop
Technical Parameters
Product Model BT100-1L BT300-1L BT600-1L Speed Adjustment Range 0.01-100RPM 0.01-300RPM 0.01-600RPM Speed Resolution 0.1 (＜100RPM), 1 (≥100RPM) Display Function 128×32 graphic dot matrix LCD display, flow rate and speed displayed on the same screen Direction Control Reversible rotation function Operation Method Rotary encoder switch combined with membrane keypad operation, more convenient for users Full Speed Function The full speed button can be used for rapid filling and emptying of the pipeline Power-off Memory Function After power-on, continue running according to the state before power-off Calibration Function With automatic flow calibration function, convenient and fast operation External Control Function Optional different types of external control modules, can perform start/stop control, direction control, flow control, 0-5V, 0-10V, 4-20mA, 0-10KHz 4 types of external control modules are optional Communication Function Optional communication module, RS485 communication control can be performed (using the common Modbus protocol) Output Function Start/stop, direction output, 0-10KHz frequency output, OC gate output Foot Switch Function Optional foot switch to control start and stop Power Consumption 35-70W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Driver Weight 4.2KG Protection Level IP31 Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Tubing
Speed Range (RPM)
Flow Range (mL/min)
BT100-1L
DMD15
3
1
2*13#
0.01-100
0.0013-12.65
2*14#
0.0049-49.4
2*19#
0.0095-97.04
2*16#
0.016-178.08
2*25#
0.034-380.9
2*17#
0.055-565.7
BT300-1L
2*13#
0.01-300
0.0013-36
2*14#
0.0049-144.04
2*19#
0.0095-158.31
2*16#
0.016-501.58
2*25#
0.034-1038.8
2*17#
0.055-1746.38
BT600-1L
2*13#
0.01-600
0.0013-49.6
2*14#
0.0049-266.45
2*19#
0.0095-564.98
2*16#
0.016-941
2*25#
0.034-1371
2*17#
0.055-3296
External Dimensions
